1/144 Orfey Class Destroyer 2014-12-03

Leetle Russian Destroyer! 1/144

  1. webwookie

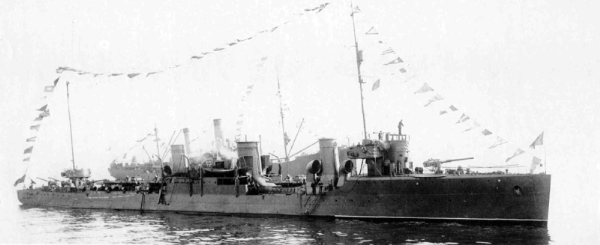

    Orfey Class Destroyer.jpg
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

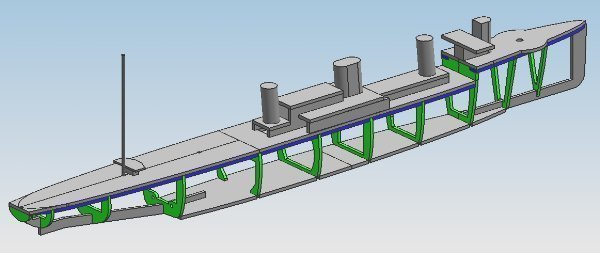

    I'd started on a model a while back from point data I had scanned-in when I was still in school; here's the product of that data after a bit of cleaning-up and conversion into a hull frame design. At least she should be easier to arm in 1/144 than the WWI German Torpedo boats.


    Displacement: 1,260 tons (standard)
    1,440 tons (full load)
    Length: 98 m
    Beam: 9.3 m
    Draught: 3 m
    Steering: 1 rudder
    Propulsion: 2 shaft AEG turbines
    4 Vulkan type boilers 30,500 hp
    Speed: 32 knots
    Complement: 150
    Armament: 4 × 4-inch (102 mm) guns
    1 x 40 mm AA gun
    2 x machine guns
    9 × 18-inch (457 mm) torpedo tubes (3 x 3)
    80 mines

    Background information source:
    Click Here
