Bismarck Battery Strip

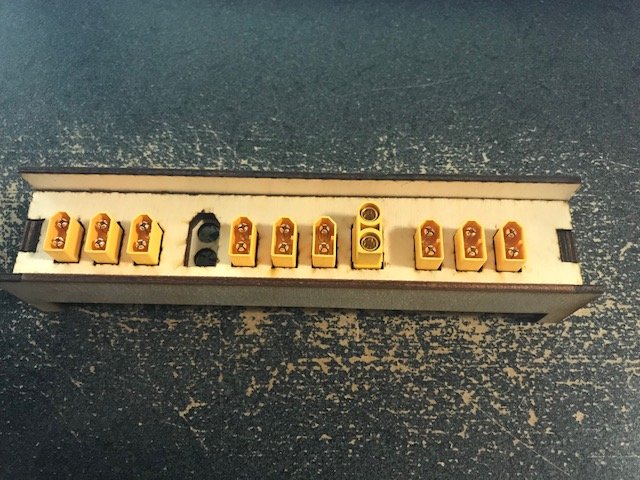

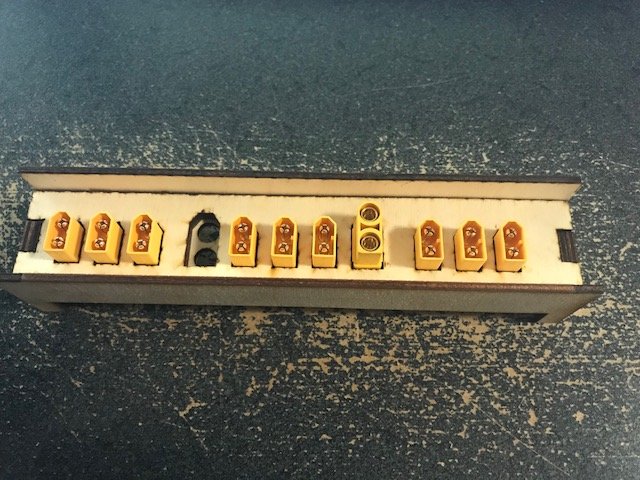

Assembled, missing a 90 connector, need to order.

Bismarck Battery Strip
djranier, Dec 20, 2017
    • bsgkid117
      I really like this idea, can we get some spy photos of how you wired them up? I was trying to figure out how to make a bus bar style setup using XT90s for the battery input and XT60's out to the components. How satisfied were you with the final product?
      Mar 14, 2018
    • djranier
      I changed it by adding a box to hold the batteries also. Its wired to give 10 volts, with 30 amps, 3 groups of 3 batteries each. 9, 3.3 volt, 10 amp batteries, the cylindrical blue cells.
