CHS Elrich von Lichtenstein - CHS EViL

Discussion in 'Steampunk Flotilla' started by McSpuds, Feb 18, 2015.

  1. McSpuds

    McSpuds Vendor

    Joined:
    Aug 22, 2011
    Posts:
    814
    Location:
    Louisville, Ky
    More photos have been approved for public viewing...

    1st section of the super has been added along with the 4 turrets.

    [​IMG]

    The pen area can be clearly identified...

    [​IMG]

    Close up of the super, and front barbett with turrets

    [​IMG]

    The bow is still there!!!!!
    [​IMG]

    Stern with prop and rudder removed, you can see the round flight deck here...

    [​IMG]

    [​IMG]


    Turret Close up

    [​IMG]

    Inside the turret

    [​IMG]

    Hollow super....

    [​IMG]


    Here is a shot of the rudder servo area under the flight deck's removable pad

    [​IMG]


    You can see the drive shaft, and areas for pump and drive motors
    [​IMG]


    Bottle post
    [​IMG]

    Plenty of wire runs along the sides...
    [​IMG]

    Shot of side profile....
    [​IMG]

    SteveT44 likes this.
  2. Lou

    Lou It's just toy boats -->> C T D <<-- Admiral (Supporter)

    Joined:
    Jan 31, 2008
    Posts:
    2,092
    Location:
    Smyrna, Georgia
    Is the tumble-home penetrable?

  3. irnuke

    irnuke -->> C T D <<--

    Joined:
    Dec 1, 2011
    Posts:
    1,079
    Location:
    York, SC
    Yup, the stringer is the waterline. 1" of height above must be penetrable. Nothing in the rules says that 1" must be vertical, though.... :)

  4. Cannonman

    Cannonman Ultimate Hero :P -->> C T D <<--

    Joined:
    Apr 9, 2008
    Posts:
    879
    Location:
    Hermitage, Tn
    This is some very nice work!! Love the turrets and superstructure. :)

  5. McSpuds

    McSpuds Vendor

    Joined:
    Aug 22, 2011
    Posts:
    814
    Location:
    Louisville, Ky
    Yes the tumble-home is pen area, gonna be a b@&%$ to skin.... but the kewl factor is worth it.


    She will be running test runs at this weekends battle for speed and turning...

  6. McSpuds

    McSpuds Vendor

    Joined:
    Aug 22, 2011
    Posts:
    814
    Location:
    Louisville, Ky
    Single gun turrets

  7. ish311

    ish311 Active Member

    Joined:
    Aug 18, 2014
    Posts:
    527
    Location:
    North Central Florida
    man... i might have to build a steampunk ship next. after all you all are in the battling area.

  8. SteveT44

    SteveT44 Well-Known Member

    Joined:
    Nov 1, 2009
    Posts:
    1,856
    Location:
    MD
    You need to model the barrels after some of those big monsters they made in the day!
    [​IMG]
    [​IMG]

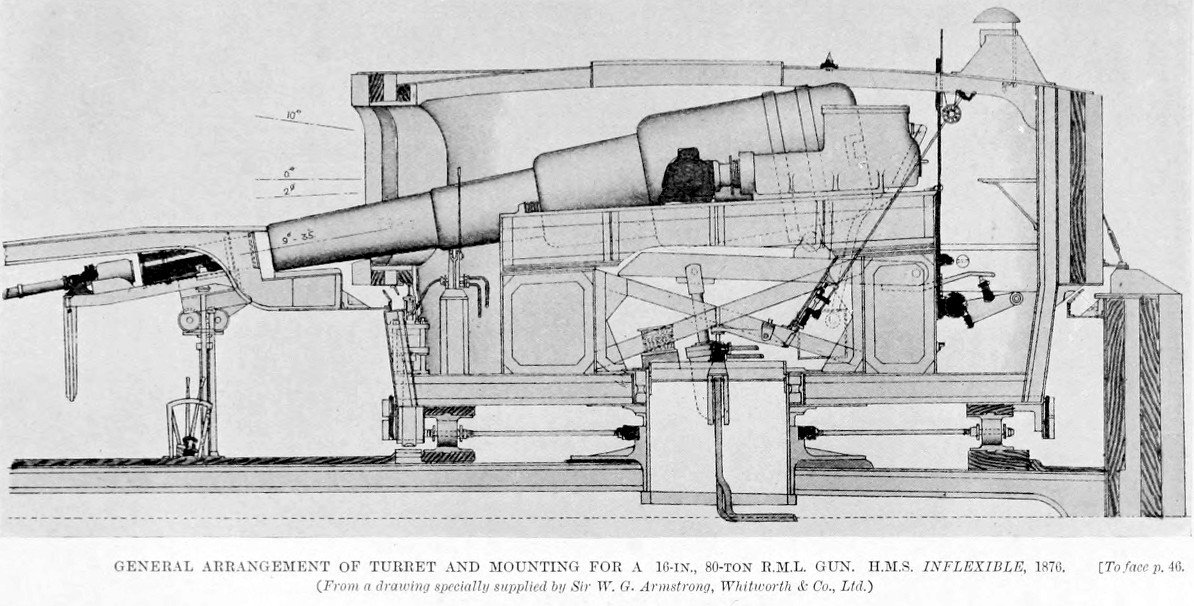

    [​IMG]

    Last edited: Mar 17, 2015
  9. McSpuds

    McSpuds Vendor

    Joined:
    Aug 22, 2011
    Posts:
    814
    Location:
    Louisville, Ky
    Thats the plan.... maybe just a little bigger and longer since it is steampunk...

  10. McSpuds

    McSpuds Vendor

    Joined:
    Aug 22, 2011
    Posts:
    814
    Location:
    Louisville, Ky
    The CHS EViL gets wetted out in preparation to be fitted out with propulsion, electronics, and armament...


    Oh how I luv West Systems....


    [​IMG]

    [​IMG]

    [​IMG]

    Swiss Cheeze likes this.
  11. Beaver

    Beaver 2020 Rookie of the Year Admiral (Supporter)

    Joined:
    Apr 12, 2013
    Posts:
    3,676
    Location:
    Central PA
    Have you considered possibly putting small slits in those wiring loops just in case you need to remove or replace one of your wires?
    On a side note, this boat is awesome!

  12. McSpuds

    McSpuds Vendor

    Joined:
    Aug 22, 2011
    Posts:
    814
    Location:
    Louisville, Ky
    Never though of slits... not a bad idea... I normally just snake the wire through and re-solder the connection if needed. The slits would enable me to remove wires without breaking any connections. I will have to look into it..

  13. SteveT44

    SteveT44 Well-Known Member

    Joined:
    Nov 1, 2009
    Posts:
    1,856
    Location:
    MD
    FYI, the designer is not really a proponent of the holes in the frame pieces, particularly the ones below the waterline stringer in the bb impact area. Otherwise freaking excellent build all around.

  14. McSpuds

    McSpuds Vendor

    Joined:
    Aug 22, 2011
    Posts:
    814
    Location:
    Louisville, Ky
    Yea, I didnt think those holes through very well.... thats why their is another set of holes up above the pen area... LOL

  15. NickMyers

    NickMyers Admin RCWC Staff

    Joined:
    Nov 15, 2007
    Posts:
    4,405
    Location:
    Federal Way, WA
    love this build. Sheeting around those barbettes sticking through the tumblehome looks like it'll be fun though

  16. McSpuds

    McSpuds Vendor

    Joined:
    Aug 22, 2011
    Posts:
    814
    Location:
    Louisville, Ky
    Gonna be easy, Jeff volunteered to do it while I drink the beer!

    absolutek and NickMyers like this.
  17. irnuke

    irnuke -->> C T D <<--

    Joined:
    Dec 1, 2011
    Posts:
    1,079
    Location:
    York, SC
    Wait, what?

  18. Ironbeard

    Ironbeard Active Member

    Joined:
    Jul 19, 2012
    Posts:
    153
    Location:
    SoCal up in the San Bernardino mountains
    And how many beers did it take to get Jeff drunk enough to volunteer for that part of the project?!?!:whistling:

    absolutek likes this.
  19. DarrenScott

    DarrenScott -->> C T D <<--

    Joined:
    Dec 7, 2006
    Posts:
    1,077
    Location:
    Australia
    If the holes are a problem they could always have short sections of pvc tube glued into them, make them nice n strong.

  20. McSpuds

    McSpuds Vendor

    Joined:
    Aug 22, 2011
    Posts:
    814
    Location:
    Louisville, Ky
    Shit, you can use that hull for a car stand!
