DKM Kormoran build

Discussion in 'Warship Builds' started by 11561, Mar 7, 2009.

  1. eljefe

    eljefe Active Member

    Joined:
    Jul 12, 2008
    Posts:
    489
    Location:
    California
    No updates on the pretty purple waxy boat?

  2. crzyhawk

    crzyhawk Well-Known Member

    Joined:
    Feb 25, 2007
    Posts:
    2,306
    Location:
    Alexandria, VA
    Here is a link to a some line drawings of the Kormoran and the Sydney.

    http://www.defence.gov.au/sydneyii/finalreport/Ships%20Plans/Ships%20Plans.pdf

    The final govenment report on the loss of the Sydney may also be found there.

  3. 11561

    11561 New Member

    Joined:
    Feb 6, 2009
    Posts:
    29
    Hey Gents,

    Yeah, I know I've been away for a while, but it's not my fault! I promise. Been dealing with various drama and associated garbage, plus a switch of jobs, ect. ect. I missed my july trials daedline and hopefully will make the new one for mid- november. Hopefully there'll be ice-free ponts down hwere then, too. Anyway, onto the pics!

    [​IMG]

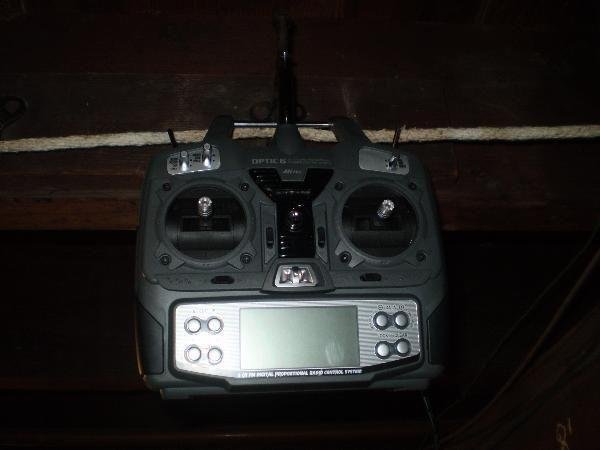

    Above you can see the radio I got for Kormoran. It's got a screen, lots of buttons, and was made for airplanes. That means I work on 72Mhz. Whatever. The hobby store guy tells me that crystals are cheap and easy to get. We'll see. The radio is a HiTec Optic 6. The guy told me it was a badass radio. I paid $100 for open box and w/o the servos. Did I get taken?

    [​IMG]

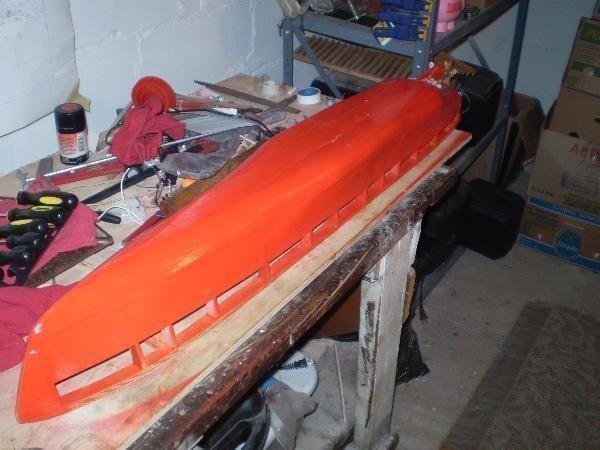

    Above you can see the girl. She's red!!!There's 2 coats on the wood, and 1 on the balsa, with a little overspray. I bought a little can of testors Gloss bright Red for below the waterline.
    [​IMG]

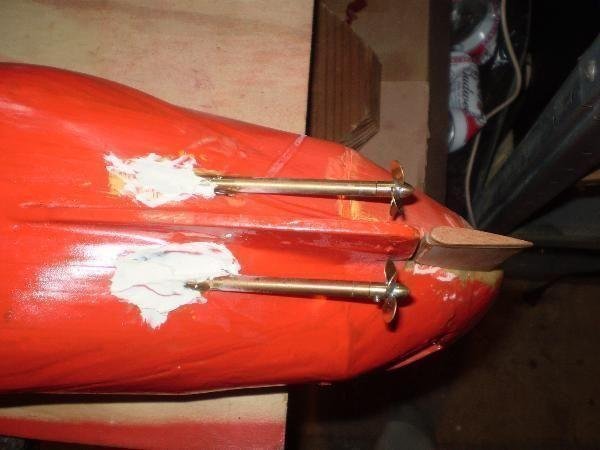

    Above you can see the 2 prop shafts w/ props attached. I used this great clear 2-part epoxy that came in a double-syringe with a self-mixing tip to secure the 2 shafts as evenly as possible. It worked out awesome! I wish I saved the pack to show you all, but I threw it out unfortunately, Over the clear epoxy went 2 coats of the obligatory Redi-Patch. There was a lot more sanding on this boat, more than I ever thought.

    [​IMG]

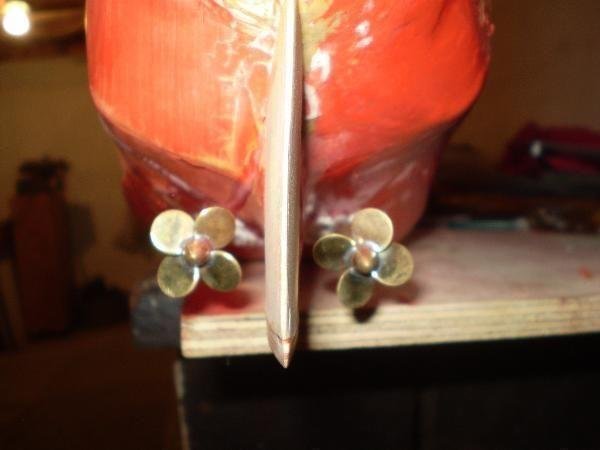

    Here's the 2 props and the rudder. I hope it looks that crooked because the table is off or I'm holding the camera crooked or something; It's not that bad in real life. Anyway, I got my order in from BC some months ago, and everything worked out great. As you can see, the props are beautiful, the shafts and shaft housings are spot-on, and the gearbox is smooth and tight. I have nothing but good to say about those guys. They thought that they took too long to fill my order, so they threw in a set of drag props for free. I prolly won't use the drag props, but I appreciate the thought. BC will be my next stop for stuff like pump and lifeboats and stuff.

    [​IMG]

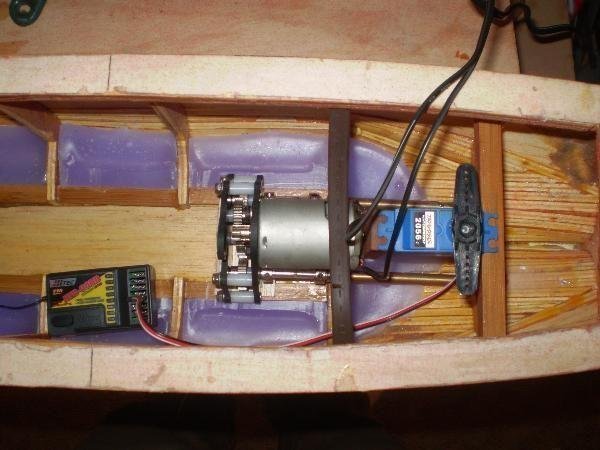

    Above you can see the motor, gearbox, rudder servo, and reciever. I will fabricate a waterproof box for the reciever and anything else that doesn't like water, and will prolly mount it as far forward as the reach of wires will allow. The guy at the hobby store told me that the speed controller gets it's power from the reciever, and then the motor gets it's power from the speed controller, but I think he might misunderstand what I'm doing, or is full of it. I think those little wires are too thin for what I'm doing.

    [​IMG]

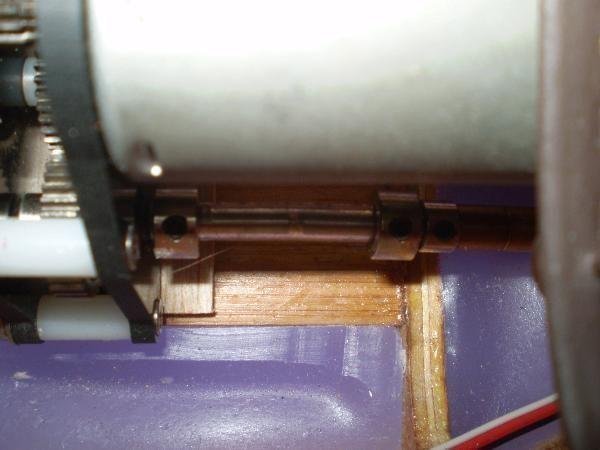

    Above you can see the flexible connection I made between the outputs from the gearbox to the prop shafts. I used a piece of 3/16" vinyl hose and a pair of "Duracollars" which are pretty much rings w/ an allen key screw to tighten whatever you've got. Last month, I machined a few pieces of brass tubing and aluminum rod and some bits of coat hangar that I was really proud of, but it turned out that once I epoxied the shafts in place, they were too stiff and made the motor work waaaay too hard. Sucks. So I scrapped my homemade dogbones and went with the vinyl hose. If the hose even lasts a single sortie, then it's ok. $1.19 a foot at ACE; A foot will last me a while.

    [​IMG]

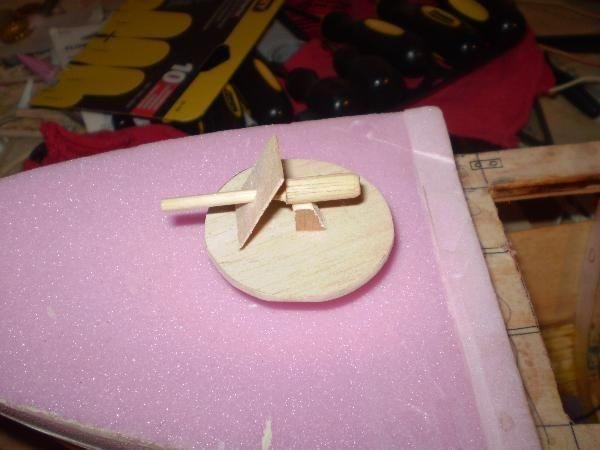

    This is the 75mm deck gun. The crew asked me for a gun shield, and it seemed lunacy to man the weapon without it. (The plans say that this gun didn't have a shield.) So there's a gun shield. We'll see how well it does in real deal combat.. I like to think that this is a pre-production model of the excellent Panzer V 75mm gun. If so, it won't just merely pierce a destroyer's armor, but rather, will go through the entire ship. There's supposed to be a pair of 20mm guns alongside the 75mm, but I haven't figured out a realistic way to build them yet.

    [​IMG]

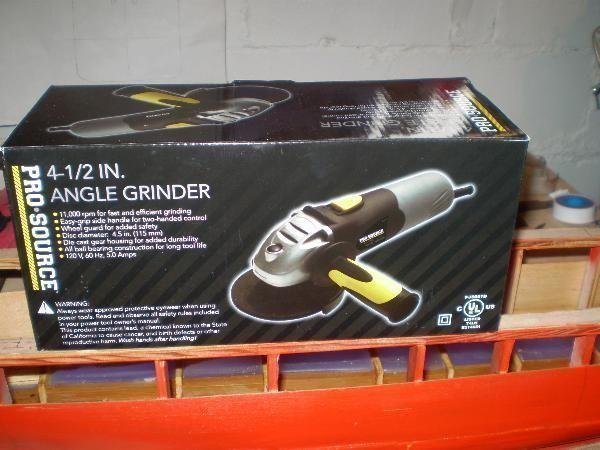

    I got this thing the other day for $20. Didn't really need it, but then again it's always better to have and not need than to need and not have. I used it just tonight to grind away some real crap welds I made on another project in the garage.

    [​IMG]

    Above is a pic of me and my dog at Lido beach, NY. That part of the day ended up w/ me getting into water up to my armpits and the dog taking a swim 3 times. Yes, I got down to my boxers before I went in. It was a little chilly at first, but once the body gets used to it, then it's ok.

    Battery recommendations, anyone? The hobby store guy was asking me. I also don't know if my props are too small or what. Let me know. They look ok to me.

  4. rarena

    rarena Well-Known Member

    Joined:
    Jan 18, 2008
    Posts:
    1,221
    Welcome back...
    The ship is coming out nice. I questioned the small props too but then I remembered you were running big gun so the speed might be ok. The speed controller wiring goes to the reciever but it has a heavy wire set that does go to the motor. In a sense the ESC acts like a big on switch for motor power. You hook the ESC to battery power, reciever and to the motor.

  5. froggyfrenchman

    froggyfrenchman Well-Known Member

    Joined:
    Apr 8, 2007
    Posts:
    3,358
    Location:
    Dayton, Ohio
    Looking very nice.
    What is the blue stuff around the edges of the hulls?
    Mikey

  6. NickMyers

    NickMyers Admin RCWC Staff

    Joined:
    Nov 15, 2007
    Posts:
    4,406
    Location:
    Federal Way, WA
    I think you're referring to the wax that he poured along the sides for water channeling?

    Its looking real good, can't wait to see sea trial prictures for it.

  7. Tugboat

    Tugboat Facilitator RCWC Staff Admiral (Supporter)

    Joined:
    Jan 10, 2007
    Posts:
    8,298
    Location:
    Statesboro, GA
    For the price of converting the 72MHz radio to 75MHz, you could have 2 (or 3) 75MHz or 2.4GHz radios, with servoes. Ship looks nice though.

  8. froggyfrenchman

    froggyfrenchman Well-Known Member

    Joined:
    Apr 8, 2007
    Posts:
    3,358
    Location:
    Dayton, Ohio
    Wax. Very interesting idea. Thanks.
    Mikey

  9. moose421

    moose421 Member

    Joined:
    Jan 20, 2009
    Posts:
    179
    I use deans ultra plugs for my battery connections. So far no problems. Other at the Port Polar Bears use them as well. Cute Puppy. Got to love the doggies. I have two of the monsters.

  10. 11561

    11561 New Member

    Joined:
    Feb 6, 2009
    Posts:
    29
    Hello Gents,
    I've got a little progress since my last post. Hull is smooth and waterproof, and painted up nicely. Superstructure is not going that great, but I have yet to devote much effort to it. I'm sure it'll be fine once I get to it.
    Anyway, onto the pics,

    [​IMG]

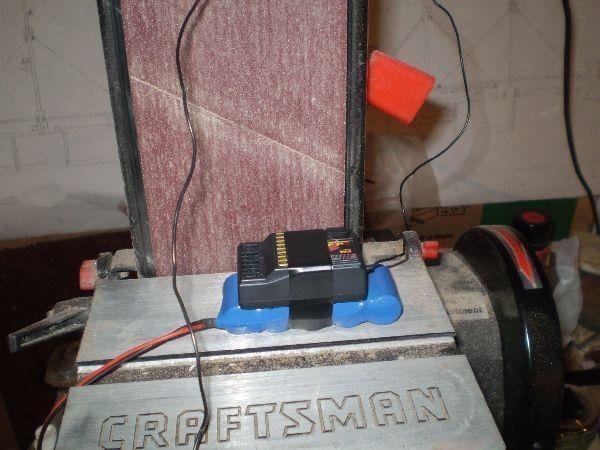

    Above is the reciever and battery. I taped them together since I don't forsee them being far apart for too long, and that they will both be in the waterproof compartment. It made the space arrangement better.

    [​IMG]

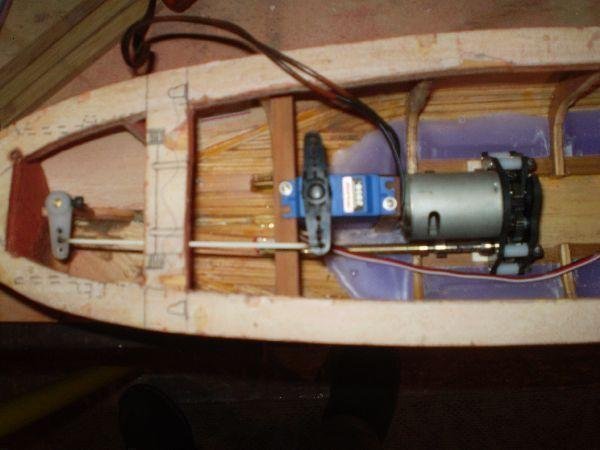

    Above we can see the steering servo tied down w/ a pair of random, but matching, screws. The linkage is made from a dead coat hangar, as promised. It works well so far.

    [​IMG]

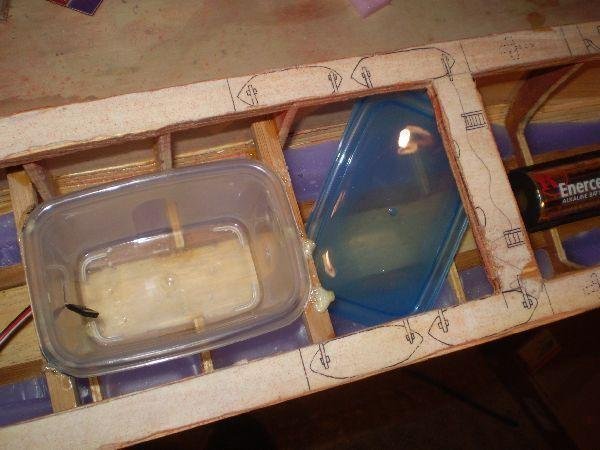

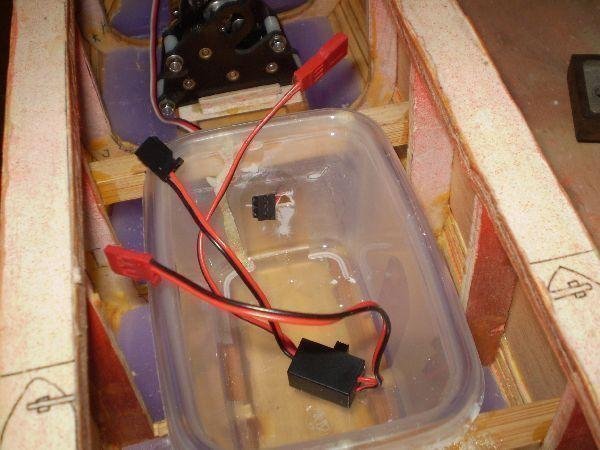

    Above is a pic of the watertight compartment. I snuck it out from above the oven when the wife wasn't looking. All penetrations into it will be fore and aft, sealed w/ clear silicone. If silicone proves unsatisfactory in testing, I guess I'll go with resin or epoxy or something.

    [​IMG]

    Above is a pic of the on/off switch. It also has a charging port for the reciever battery. I guess I'll cut a slot for it in the caprail somewhere, or maybe will leave it somewhere inside the boat. Depends on rules and reach of wires. TBA

    [​IMG]

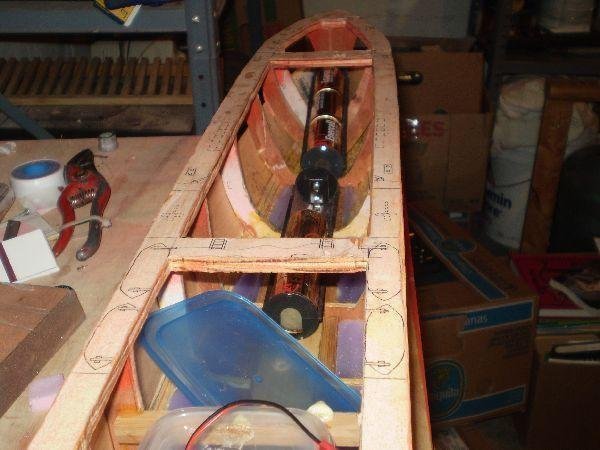

    Above is my general idea for battery placement. That's 2x3-cell D batteries for a total of 9 volts. Motor seems to like it. I hope they make rechargable battries in packs and capacity that I want. I haven't really investigated or fabricated yet.

    [​IMG]

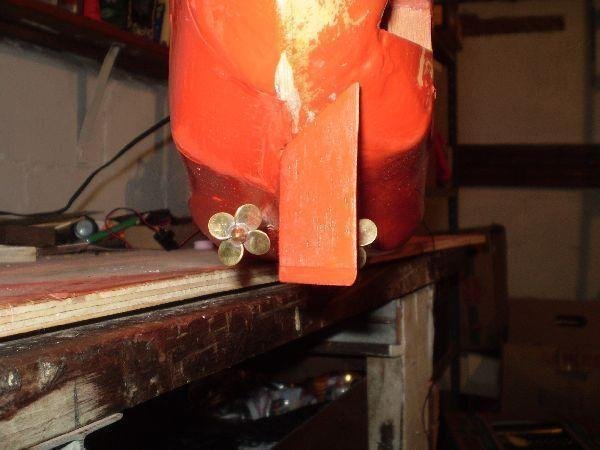

    This is the full stbd travel of the rudder and servo as hooked up in a few photos above. This was exciting as this was the first time the boat did anything for itself.

    [​IMG]

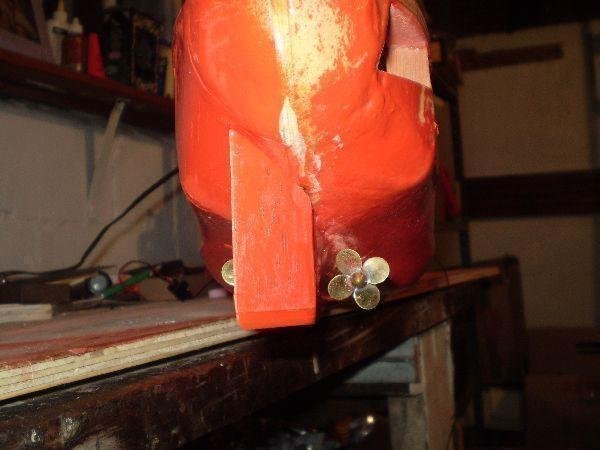

    Above is the full port throw of the rudder. The radio has a nifty adjustment device that will let me fine-tune the throw of the rudder. There's also a trim device that will let me trim the rudder to p or s by I guess up to like 20 degrees. It's pretty cool. Now all I need to work on is Superstructure and ESC and batteries. This vessel will not be armed to begin with.

  11. froggyfrenchman

    froggyfrenchman Well-Known Member

    Joined:
    Apr 8, 2007
    Posts:
    3,358
    Location:
    Dayton, Ohio
    She is coming along nicely.
    Well done.
    Mikey

  12. rarena

    rarena Well-Known Member

    Joined:
    Jan 18, 2008
    Posts:
    1,221
    Could use wax to seal the inside of the wt box. Leave a hollow in the center for the receiver. My receiver is a block of wax but that's a different story....

  13. HorribleHarry

    HorribleHarry Member

    Joined:
    Sep 5, 2008
    Posts:
    78
    Any updates? I Have always been fond of this ship. I need to read the MWC rules over again since I think that this ship being a "auxiliary CRUISER" should have the same unit numbers as a light cruiser at the least. Ask HMAS Sydney.

  14. bugler

    bugler Member

    Joined:
    Sep 28, 2014
    Posts:
    68
    Location:
    Pacific Ocean.....
    Looks really good.

    I wonder at the width of your planks? Could you not plank wider? I am pretty new so forgive my lack of knowledge. Perhaps you cannot go wider?

  15. NickMyers

    NickMyers Admin RCWC Staff

    Joined:
    Nov 15, 2007
    Posts:
    4,406
    Location:
    Federal Way, WA
    I don't think you're going to get an answer on a 5 year old thread, but I would hazard a guess that wider planks are harder to work around bends. In this particular case though, he ripped leftover plywood to make his planking, so his plank width was constrained to the original thickness of the plywood

  16. NASAAN101

    NASAAN101 Well-Known Member

    Joined:
    Aug 26, 2009
    Posts:
    2,505
    Location:
    Pittsburgh PA, USA
    hey 11651,
    what scale is Kormoran in?? I would love to find plans for her!
    Nikki

  17. irnuke

    irnuke -->> C T D <<--

    Joined:
    Dec 1, 2011
    Posts:
    1,079
    Location:
    York, SC
    Guys, before posting to a thread w/ questions, please at least glance at the date the thread started & the date of the last post. Resurrecting posts from when Nixon was President are highly unlikely to be responded to or pertinent. (OK, Nixon is an exaggeration. You get the picture)

    Lou likes this.
  18. NASAAN101

    NASAAN101 Well-Known Member

    Joined:
    Aug 26, 2009
    Posts:
    2,505
    Location:
    Pittsburgh PA, USA
    That way my bad, I was thing he was still an active member on here :(

    Last edited: Mar 3, 2015
  19. CURT

    CURT Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    5,751
    Location:
    St. John's Newfoundland , Canada
    Looking Great!

  20. Swiss Cheeze

    Swiss Cheeze Member

    Joined:
    Aug 23, 2013
    Posts:
    98
    Yeah 40 Years and 5 years is quite a difference. It might pull someone back in or not. Sometimes the last post for a ship or methods for which it was built could be farther back and newbies are just asking questions. What harm is that?
