Graf Spee

Discussion in 'Warship Builds' started by BoomerBoy17, Oct 16, 2008.

  1. SnipeHunter

    SnipeHunter Well-Known Member

    Joined:
    Aug 22, 2007
    Posts:
    1,364
    probably 90-120 degrees? look it up on thier website?

  2. rarena

    rarena Well-Known Member

    Joined:
    Jan 18, 2008
    Posts:
    1,221
    My servos usually turn bout 60-70degrees, I set up the sodak to turn 1-1 ratio and full through is just about perfect. The micro servo may be different but it can't be much. Boomer, how many rudders you turning? I remember one and not much room to play back there. You might want to go control rod instead of gears.

  3. Powder Monkey

    Powder Monkey Active Member

    Joined:
    Dec 18, 2006
    Posts:
    1,394

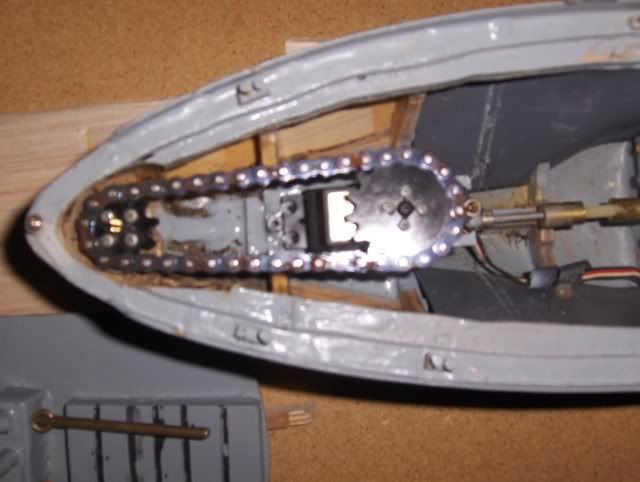

    You might want to try gear and sprocket to save the room and depending on the radio you might have some adjust ability there as well

    [​IMG]

    :blink:​

  4. BoomerBoy17

    BoomerBoy17 Active Member

    Joined:
    May 27, 2008
    Posts:
    1,946
    ive got plenty of room for gears, as im only turning 1 rudder

  5. Powder Monkey

    Powder Monkey Active Member

    Joined:
    Dec 18, 2006
    Posts:
    1,394
    Room enough for the BC gears?

  6. BoomerBoy17

    BoomerBoy17 Active Member

    Joined:
    May 27, 2008
    Posts:
    1,946
    not using BC gears, using Chris Kessler gears

  7. Powder Monkey

    Powder Monkey Active Member

    Joined:
    Dec 18, 2006
    Posts:
    1,394
    WELL THAN I GUESS YOU HAVE THE ANSWER SO WHAT ARE YOU ASKING ?

  8. BoomerBoy17

    BoomerBoy17 Active Member

    Joined:
    May 27, 2008
    Posts:
    1,946
    Im asking what gear ratio to use for my rudder setup, as Chris provided me with many sizes. Like 1:2 or 3:2, i'd like an idea on the ratio.

  9. SnipeHunter

    SnipeHunter Well-Known Member

    Joined:
    Aug 22, 2007
    Posts:
    1,364
    How much does the servo turn? If it only turns 60 degrees I'd use a 3:1 ratio, 90 degrees 2:1. I have never looked at rudder gear ratios, its pretty easy to eyeball the right one or test a few out till you get the rudder throw you want. Whatever gives your rudders about 90 degrees swing in either direction, its easy enough to fine tune with endpoint adjustments.

  10. djranier

    djranier Well-Known Member

    Joined:
    Jul 24, 2007
    Posts:
    1,756
    I think he going with the DX5 Snipe, no endpoint adjustments.

  11. SnipeHunter

    SnipeHunter Well-Known Member

    Joined:
    Aug 22, 2007
    Posts:
    1,364
    In that case I wouldn't worry about it to much, use whatever gears will give you full throw in both directions and that will be plenty good.

  12. BoomerBoy17

    BoomerBoy17 Active Member

    Joined:
    May 27, 2008
    Posts:
    1,946
    But since i dont know how much throw i have in both directions, thats an isssue, ill have to research a little, if anyone knows though, that'd be great.

  13. rarena

    rarena Well-Known Member

    Joined:
    Jan 18, 2008
    Posts:
    1,221
    You have to mock it up and see what works best. Anything else is farting in the wind and will probably be redone. Plug your radio, servo in, set the rudder in the shaft, pick out some gears and see how it all works. :confused:

  14. Powder Monkey

    Powder Monkey Active Member

    Joined:
    Dec 18, 2006
    Posts:
    1,394
    I love all this technical jargin , Farting in the wind is that any thing like trying to catch a fart in mitten ?

  15. Bob

    Bob Well-Known Member

    Joined:
    Jun 14, 2007
    Posts:
    1,321
    On a standard servo without an adjustible end point radio the gears need to be 2:1 to get full throw in both directions.

  16. djranier

    djranier Well-Known Member

    Joined:
    Jul 24, 2007
    Posts:
    1,756
    I think he said he was going to use the Traxxis watertight servo, they have a 60 deg throw, so a 3:2 gear ratio is what he would need.

  17. BoomerBoy17

    BoomerBoy17 Active Member

    Joined:
    May 27, 2008
    Posts:
    1,946
    Rob, still waiting on the radio....
    thanks Dj, ill find the right gears for a 3:2 ratio.

  18. djranier

    djranier Well-Known Member

    Joined:
    Jul 24, 2007
    Posts:
    1,756
    Of course with a single rudder ship, I don't think you are going to want to turn the rudder much past 60 deg anyways, maybe 70. If you do 90, your boat will pretty much come to a dead stop, not good around other ships. A 1.25:1 ratio is enough I would think,that would be 75 deg. On Rick's Scheer he never goes much past 70 deg, I helped him set his up.

  19. crzyhawk

    crzyhawk Well-Known Member

    Joined:
    Feb 25, 2007
    Posts:
    2,306
    Location:
    Alexandria, VA
    I'm giving serious thought to picking up one of those servos and trying it as the rudder servo in my Belleau Wood.

  20. djranier

    djranier Well-Known Member

    Joined:
    Jul 24, 2007
    Posts:
    1,756
    The one that Snipe posted before from Tower hobbies is the about the same as far as I can tell, just a different color, but its a bit cheaper at Tower Hobbies. Its made by Hitec, has a Hitec spline. All the numbers on the units match up within a few ounces.

    One of the Shortest Proportional Servos Available
    High Torque for .60 size Models or .40 size Aerobatic Models
    Single Top Ball Bearing for Smooth, Precise Output Control
    Combination Metal/Resin Gear Train Provides Reliable Operation
    Watertight
    Surface Mount Technology (SMT) Allows this Servo to be More Reliable in High-Vibration Environments.
    $23.99, at bit cheaper than the Traxxis.

    http://www3.towerhobbies.com/cgi-bin/wti0001p?&I=LXPB45&P=7
