OB BIS REFIT

Discussion in 'Atlantic Radio Control Club' started by CURT, May 29, 2008.

  1. CURT

    CURT Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    5,751
    Location:
    St. John's Newfoundland , Canada

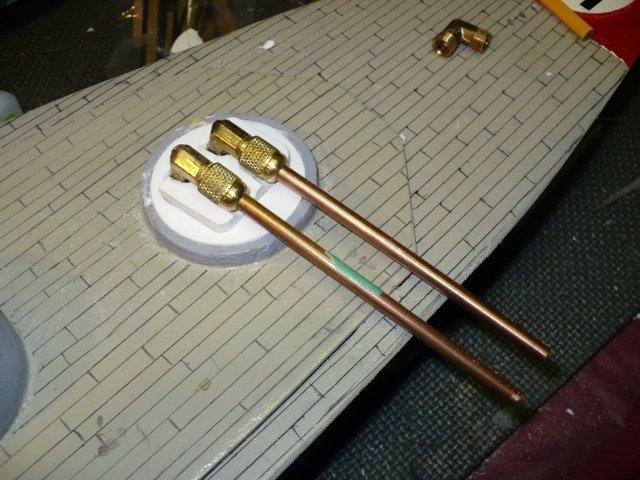

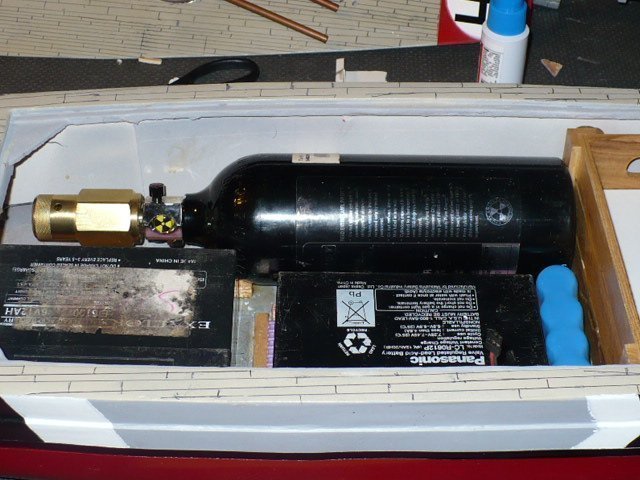

    some updated pics [​IMG]

  2. CURT

    CURT Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    5,751
    Location:
    St. John's Newfoundland , Canada
  3. CURT

    CURT Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    5,751
    Location:
    St. John's Newfoundland , Canada
  4. CURT

    CURT Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    5,751
    Location:
    St. John's Newfoundland , Canada
  5. CURT

    CURT Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    5,751
    Location:
    St. John's Newfoundland , Canada

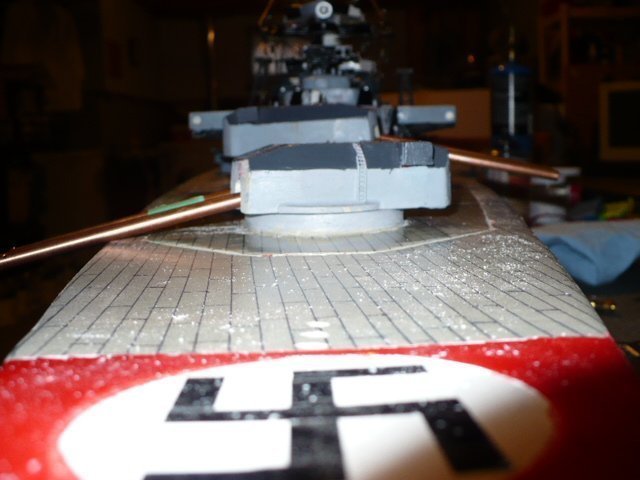

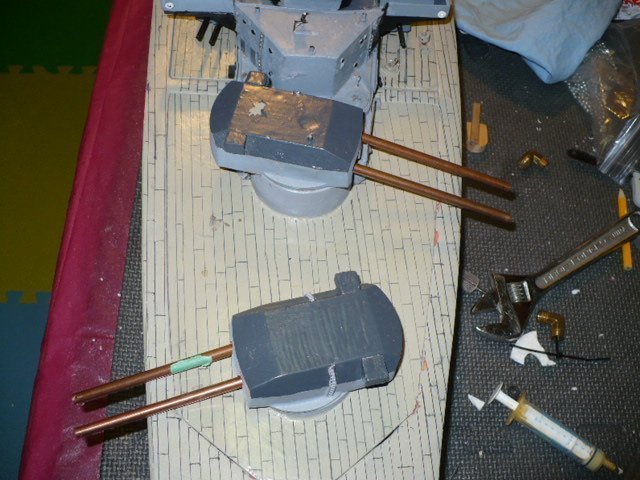

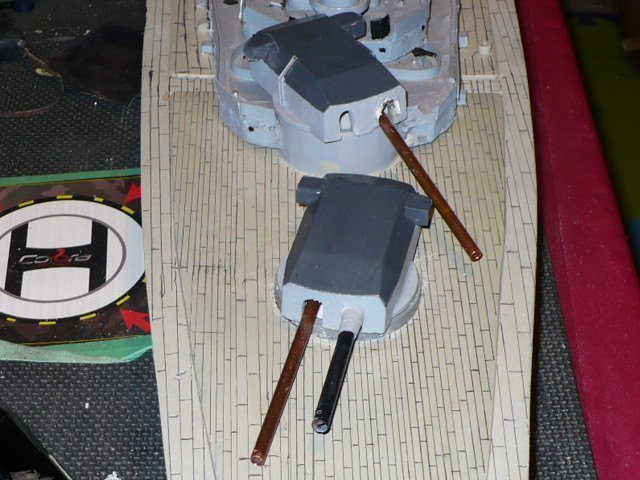

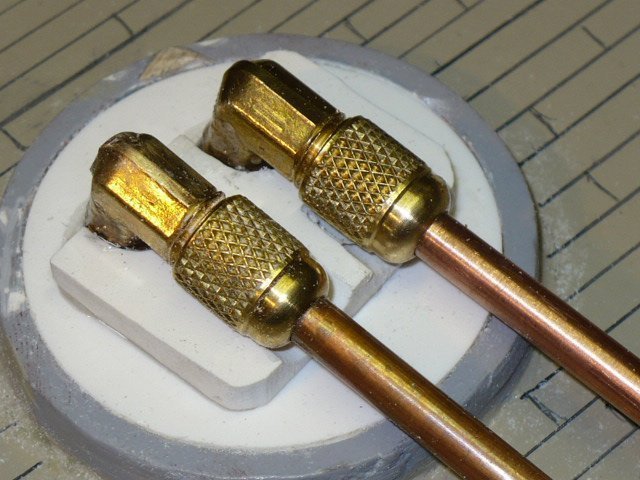

    That was not the final cannon installment. Playing around with options at that point.

  6. CURT

    CURT Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    5,751
    Location:
    St. John's Newfoundland , Canada
  7. CURT

    CURT Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    5,751
    Location:
    St. John's Newfoundland , Canada
  8. CURT

    CURT Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    5,751
    Location:
    St. John's Newfoundland , Canada
  9. CURT

    CURT Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    5,751
    Location:
    St. John's Newfoundland , Canada
  10. CURT

    CURT Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    5,751
    Location:
    St. John's Newfoundland , Canada
  11. CURT

    CURT Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    5,751
    Location:
    St. John's Newfoundland , Canada
    Ok it's 2:24 am and if I don't get to bed and get rested this is what I will look like in the morning and a cup of coffee just won't do ...[​IMG]

  12. rarena

    rarena Well-Known Member

    Joined:
    Jan 18, 2008
    Posts:
    1,221
    There goes Tokyo! LOL!

  13. CURT

    CURT Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    5,751
    Location:
    St. John's Newfoundland , Canada

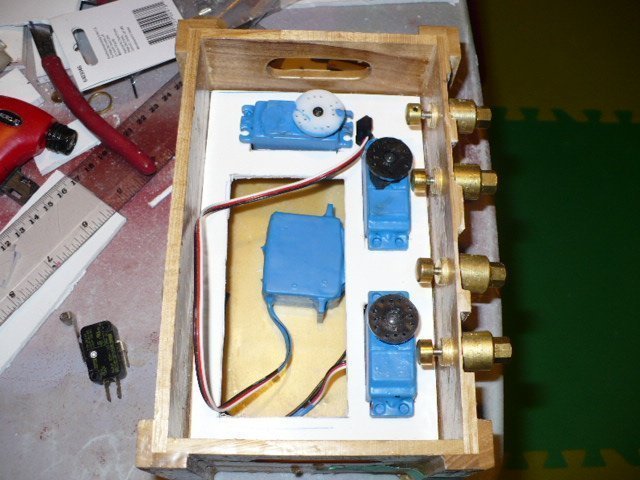

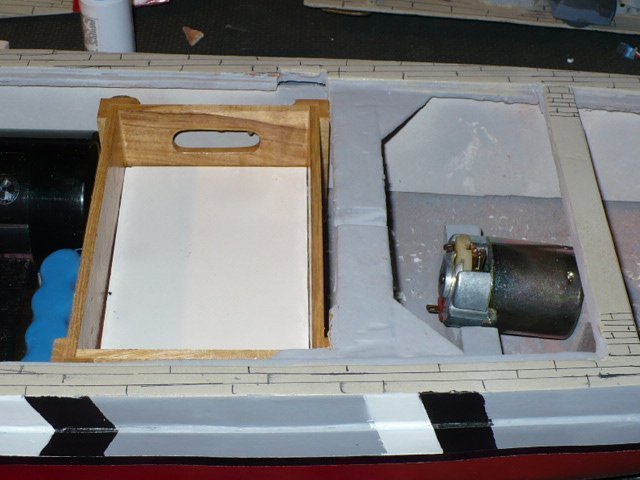

    Got the servo tray completed inside the box. Servos are mounted and the Poppet Valves are mounted. Servo Arm is mounted. Moose is Mounted . Now to test fit the box in the hull and see how things are situated.

  14. bb26

    bb26 Well-Known Member

    Joined:
    Jan 25, 2007
    Posts:
    1,952
    This is good to hear. So what is left to do on the BIS?

  15. CURT

    CURT Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    5,751
    Location:
    St. John's Newfoundland , Canada
    Box fits great in the hull with the valves attached. The Rudder Platform is installed and secured. The 2lb dive weight is mounted and secured. Now it's just a matter of plumbing up all the CO2 valves and poppets and securing them with threadlock, clamps o-rings ect. Have to build mounts for the forward Accumulator Tanks and the Aft Acculator Tank. Once the plumbing is completed on to installing the speed adjust resistor and install the mounts for the throttle switches, install the throttle servo, and install the wiring harnesses for the switches for hte motors, batteries, pump, and lights. Making good progress now. Been taking pics too so will post when I get the chance.

  16. bb26

    bb26 Well-Known Member

    Joined:
    Jan 25, 2007
    Posts:
    1,952
    What type of threadlock are you using?

  17. CURT

    CURT Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    5,751
    Location:
    St. John's Newfoundland , Canada
    Not the red permament threadlock. No I use the Blue Loc-tite threadlock. If you need to take the valve off you won't need a power wrench to do it.

  18. rarena

    rarena Well-Known Member

    Joined:
    Jan 18, 2008
    Posts:
    1,221
    keep a close eye out, they switched the blue locktite to a red tube... to mess you up.

  19. CURT

    CURT Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    5,751
    Location:
    St. John's Newfoundland , Canada

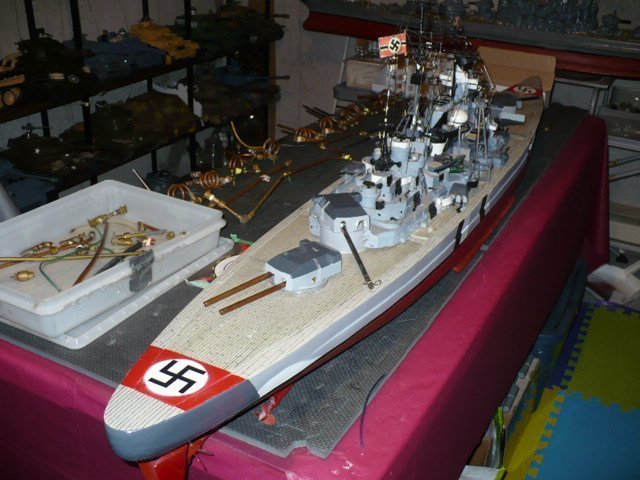

    Ok Thanks for the heads up on that . Update. Nearly have all the plumbing figured out. I should've ordered addtional barbs large and small. I had to cannabolize Bismarck's old system to get the extra barbs and valves. What I did was attach the barbs and fittings to the Radio box, attach valves, barbs and fittings to the accumulators, attach the regulator with the fittings and barbs then attached the small hoses. All of this outside of the hull. I like to do a preliminary set up outside of the hull so I can get an idea of how it's all going to go together and see where I need to make corrections and extra length hoses. Once figured out then I reattach all with seals but just to secure without threadlock, hook it all up then pressurize the system. That way I can easily check for any leaks and fix with no fuss because it's outside the hull. I lay out the co2 system as if it is in the hull so I know how everthing is going to fit once it's in the hull. Once done it goes back in and is sealed for final install and secured in the hull. Nearly done with this. I hope to have the entire system ready this week and start the electrical process.

  20. rarena

    rarena Well-Known Member

    Joined:
    Jan 18, 2008
    Posts:
    1,221
    Sounds good, I'm still messing with pumps. I'm making a back up one and you know it has to pump just a bit more than the others
    You can guess how that is going...
