    Construction - Mounting the Pump

    While we are talking about the pump, I'll go ahead and post the pictures on how it went for the Bearn.

    After deciding where the pump will be placed, I traced around the pump housing to mark it on top of the water channel sides.

    [​IMG]

    [​IMG]

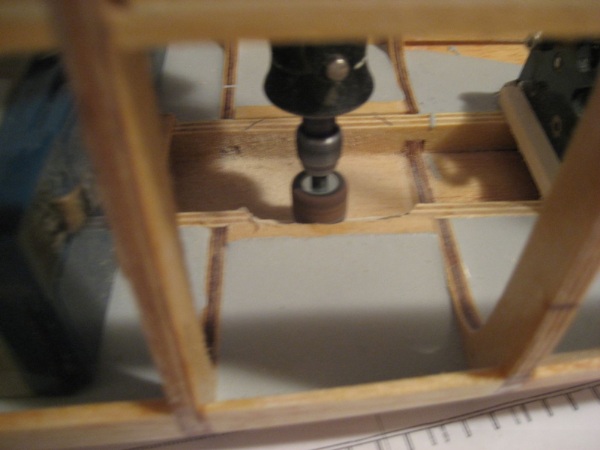

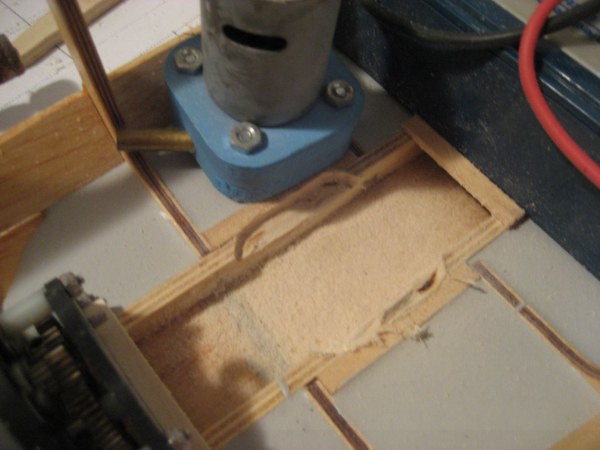

    Using the Dremal with a drum sander attachment, I routed out the inside of the marked area to about 1/4" depth. Sorry for the fuzzy pictures ... was trying to hold the camera and show how this was done at the same time.

    [​IMG]

    [​IMG]

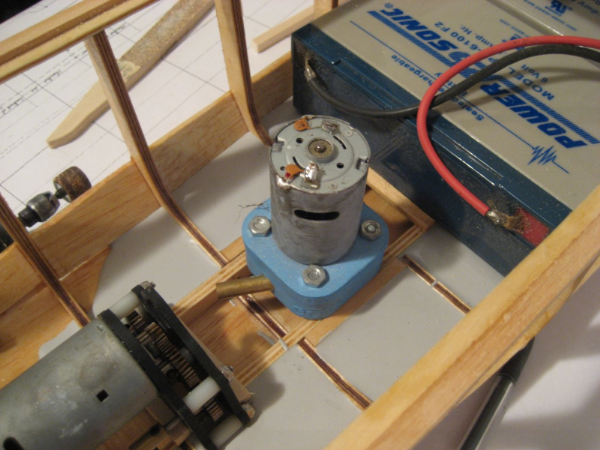

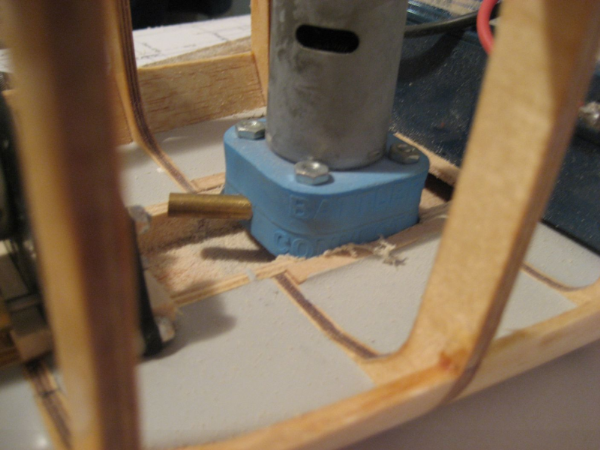

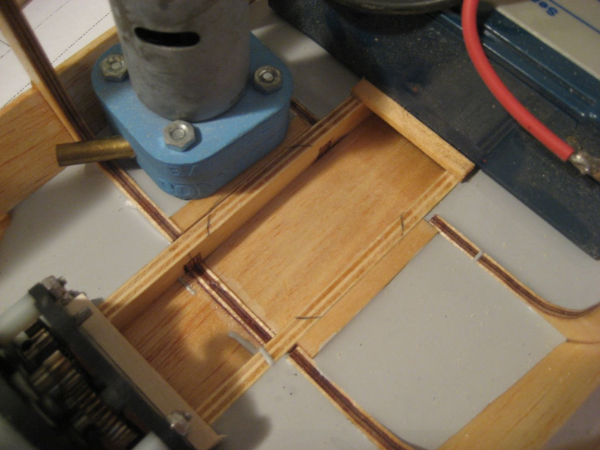

    Now the pump sits nicely in a cutout with a 1/4" space between the bottom of the pump and the bottom of the water channel.

    [​IMG]

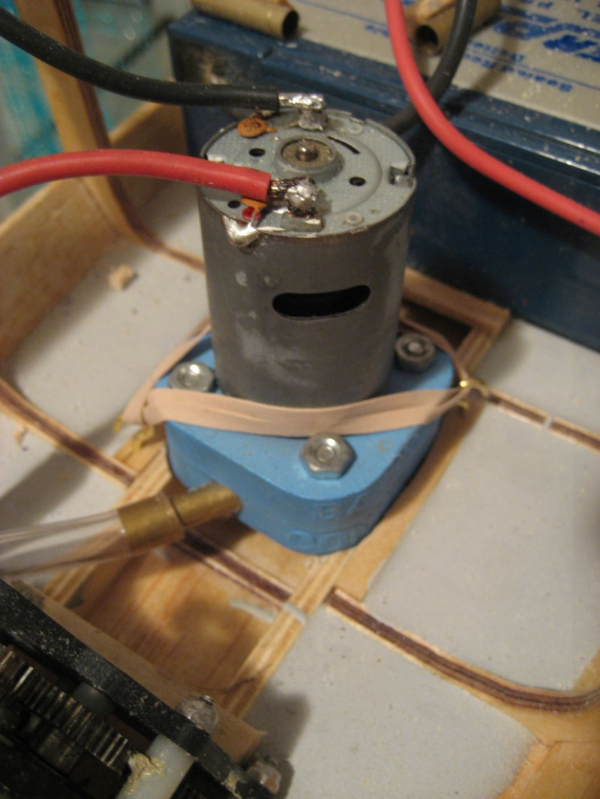

    Add a couple of screw hooks from the hardware section of most department stores and a rubber band to hold the pump in place ...

    [​IMG]


    What we end up with is a tidy pump installation that keeps the pump firmly in place yet allows the pump to be removed for cleaning or repairs within a minute. :)

  2. Kotori87

    Kotori87 Well-Known Member

    Joined:
    Nov 8, 2006
    Posts:
    3,536
    Hey Mike, one of the things we do in the garage where I build boats is pour a mixture of lead and epoxy in the bottom of each boat for stability. Once the ship is basically done, with all the components in and I know how much lead ballast I need to add (and where it needs to go), I weigh out that much lead bird shot, and pour it into the bottom of the boat along with a batch of epoxy. The lead/epoxy mixture both forms the water channel and acts as super-dense ballast. For my next boat, I am considering putting a mold release compound in the boat before I pour the lead/epoxy mixture, so I can remove the ballast for easy transport.

    I like the lead/epoxy mixture because not only does it help with ballast and stability, it also lets you show off your fine woodwork better than a flat grey cement sealant does.

  3. djranier

    djranier Well-Known Member

    Joined:
    Jul 24, 2007
    Posts:
    1,756
    Very nice install on the pump, I will have to remember that for my next ship. I see that you are reversing the motor on the dual gearbox also, that alone saves you alot of internal room.

  4. mike5334

    mike5334 Well-Known Member

    Joined:
    Aug 21, 2007
    Posts:
    1,877
    Location:
    Mississippi
    Thats a good idea Carl. I may have to try it on the next wood ship I build. :)

  5. Gascan

    Gascan Active Member

    Joined:
    Jul 22, 2007
    Posts:
    920
    Lead and epoxy can also be used in a fiberglass hull, just like the self-leveling cement. I agree about the pump mount. It's very cool and makes access and maintenance easier. Are you at all worried about the rubber band wearing out?

  6. Gettysburg114th

    Gettysburg114th Well-Known Member

    Joined:
    Feb 3, 2007
    Posts:
    1,682
    I used lead and epoxy once and liked the results. However, in the fast gun club I was running in at the time I found that because of the motors we used it was better to use batteries as the weight. I use the 6 volt 12 amp "bricks and in larger boats they sit right at or just above the water line. The format I run in now allows us to change batteries every sortie so I may have to rethink wat I am doing.

  7. mike5334

    mike5334 Well-Known Member

    Joined:
    Aug 21, 2007
    Posts:
    1,877
    Location:
    Mississippi
    I tend to change rubber bands if the band starts showing cracks or tears when I stretch the band. It's a habit from flying model planes with rubber banded wings. Heh.

    I haven't changed a pump band yet because the band was bad. Most of the time, it gets changed because I loose the original one.

  8. BoomerBoy17

    BoomerBoy17 Active Member

    Joined:
    May 27, 2008
    Posts:
    1,946
    Mike, thanks for the update, the Bearn is quite the ship. Do you have plans for that you might share? Im looking forward to the rest of this build, im sure it will be the only french aircraft carrier ever. Good luck.

  9. mike5334

    mike5334 Well-Known Member

    Joined:
    Aug 21, 2007
    Posts:
    1,877
    Location:
    Mississippi
    You can find a link to the plans in the first post of this thread. Just save them to a CD or memory stick and take them to any printer like Copymax. :)

    There has been Bearns battled before. Mikey Deskin took one to a fast gun Nats a while back. He did convoy runs during the campain portion of the Nats. He also got sneaky and armed the ship for the last 5 or 10 minutes of that campain and shot at some other ships, giving him the distinction of having actually battled a carrier in fast gun. :)

    My Bearn will only be convoy for the upcoming MWC Nats, but it will get armed for some Treaty combat and possibly some Big Gun combat later on. :)

    More pictures are coming!

  10. BoomerBoy17

    BoomerBoy17 Active Member

    Joined:
    May 27, 2008
    Posts:
    1,946
    I cabt wait for those pictures. the bearn is a really nice ship. And yea, ill have to remember that and maybe do it myself later on.

  11. mike5334

    mike5334 Well-Known Member

    Joined:
    Aug 21, 2007
    Posts:
    1,877
    Location:
    Mississippi
    Construction - Rudders

    There are a few ways to make rudders. Many times they are made of a simple piece of flat brass soldered to a shaft. They work pretty good, but to get the best turning from a ship, the rudder should be shaped into an airfoil profile, kinda like how an airplane wing is shaped. An airfoil shape lets the water flow smoothly over the rudder and can actually "lift" or pull more than a flat plate rudder can. My Richelieu has an airfoiled rudder and has been called one of the best turning single rudder battleships on the water.

    Since I dislike soldering brass (I suck at it!), the Bearn's rudders are made from wood sealed with epoxy resin. First off, I made sure the rudder was the correct sized allowed by MWC/IRC rules. A pattern is cut out, glued to wood, and four rudder shaped blanks were made.

    [​IMG]

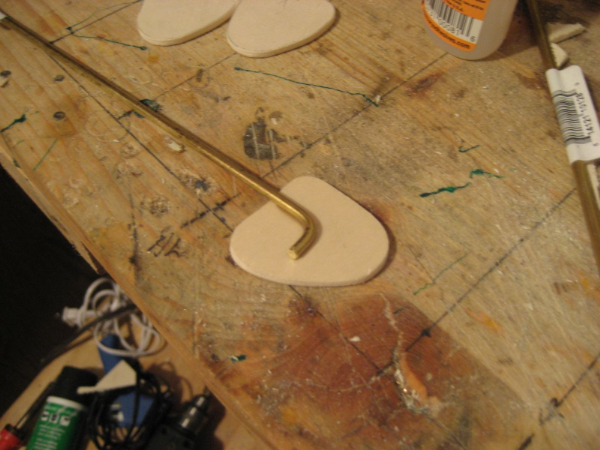

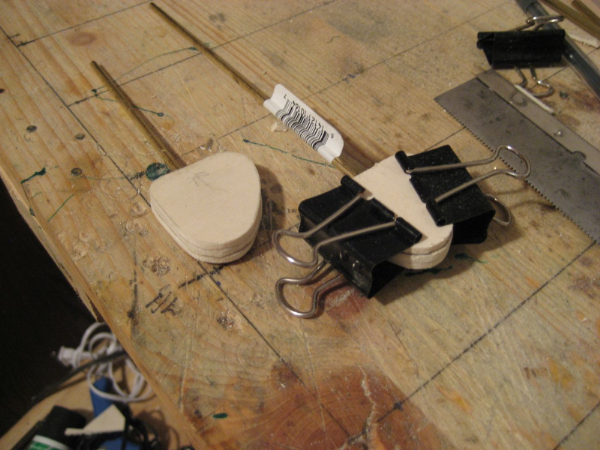

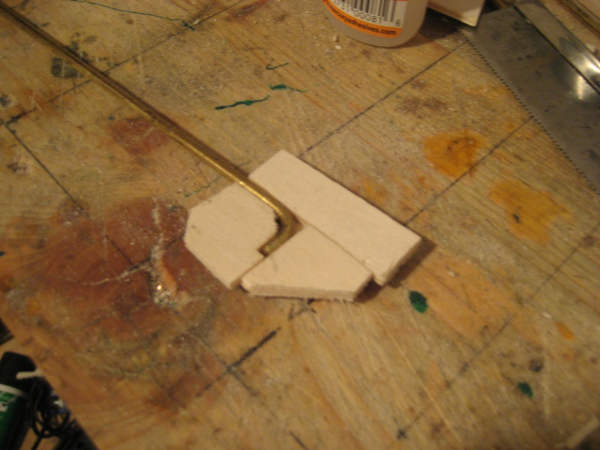

    Next, the rudder shaft is positioned and glued onto a blank. Notice the bend at the end of the rudder shaft. That keeps the rudder from spinning on the shaft.

    [​IMG]


    Using scrap pieces of 1/8" plywood, I built up a layer of wood around the rudder shaft.

    [​IMG]


    Finish the wood sandwich by adding another rudder blank over the shaft and middle layer of wood. Clamp until the glue has set. By the way, I used superglue to make these rudders.

    [​IMG]

    [​IMG]

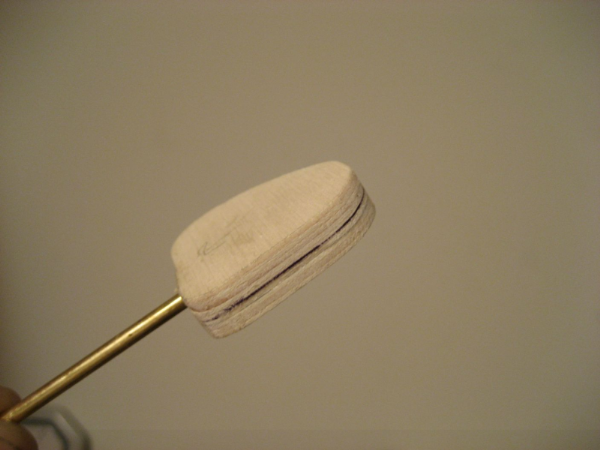

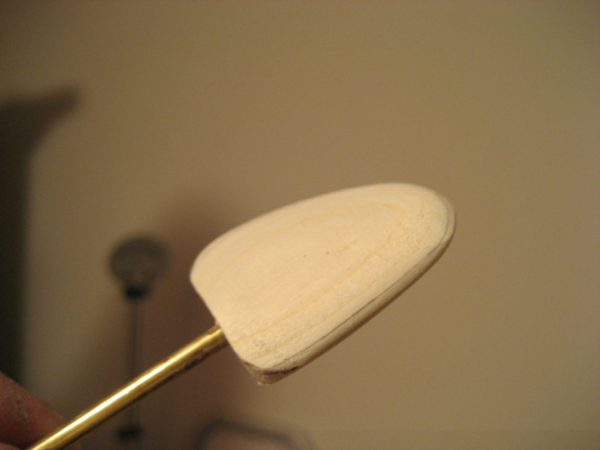

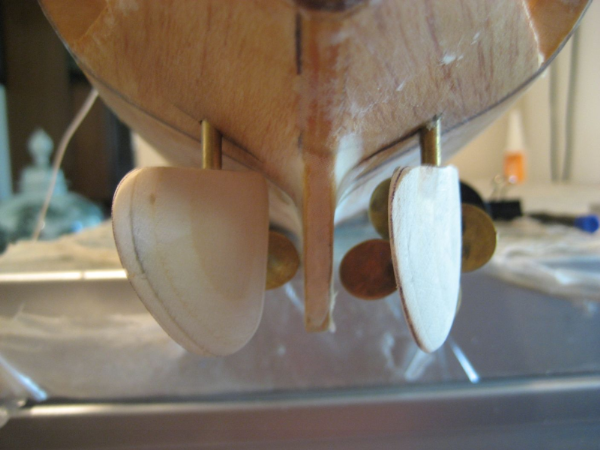

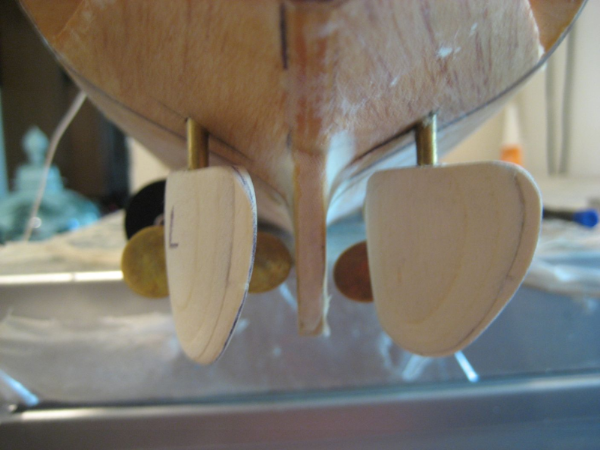

    Now sand the leading and trailing edges/sides of the rudder into a smooth airfoiled shape. Sorry I don't have pictures of the sanding part, but the result is below.

    [​IMG]


    All that is left on the rudder itself is to waterproof it with either an expoxy resin or a few coats of varnish. :)

  12. Anachronus

    Anachronus Well-Known Member

    Joined:
    Mar 27, 2007
    Posts:
    3,085
    Location:
    Natchez, MS
    Nice addition to the construction thread.

  13. mike5334

    mike5334 Well-Known Member

    Joined:
    Aug 21, 2007
    Posts:
    1,877
    Location:
    Mississippi
    Construction - Rudder Servo and Linkages

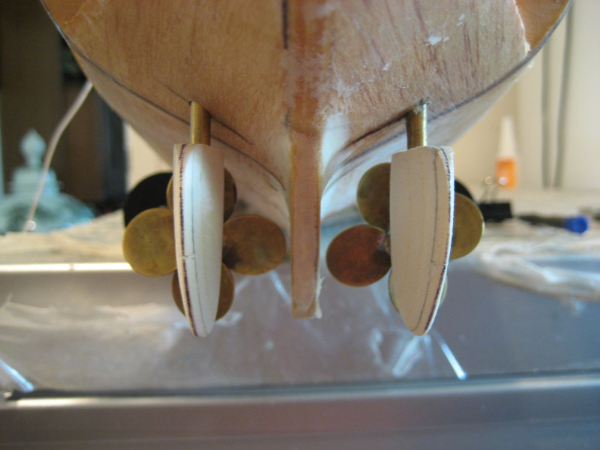

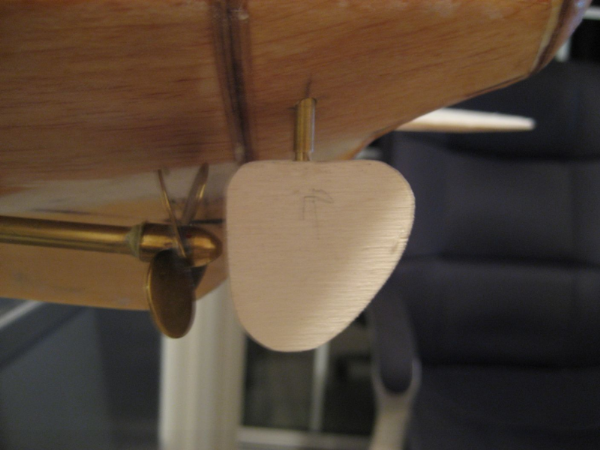

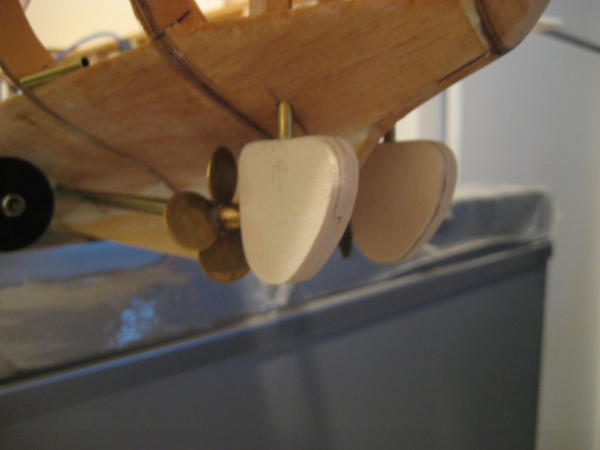

    Some readers might have wondered why the rudder shaft tubes haven't been put yet. Welp, I wanted to get the rudders made first to see where the the best place to put the rudder shaft tubes. Still trying to get the best turning that the ship can have, the rudders must be placed right behind the props to get the most propwash possible over the rudder. Now that the rudders are made and the props are in place, it's easy to trial fit the rudder shaft tubes into place.

    [​IMG]

    [​IMG]

    [​IMG]

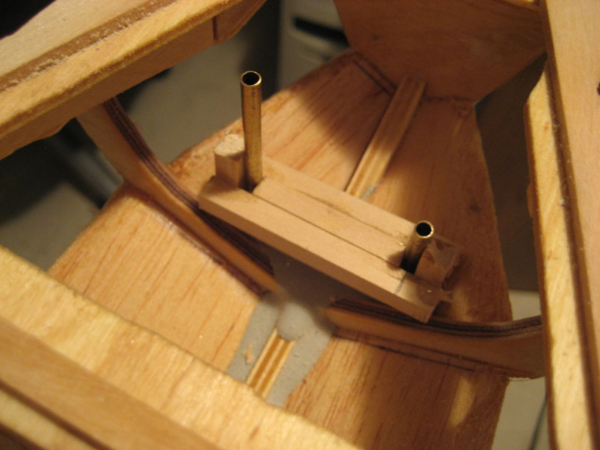

    On the inside of the hull, the rudder shaft tubes are braced with built up pieces of 1/4" basswood. They aren't going anywhere! Once the tubes are braced, they are cut down to size for a trial fitting of the rudders and control arms.

    [​IMG]

    [​IMG]

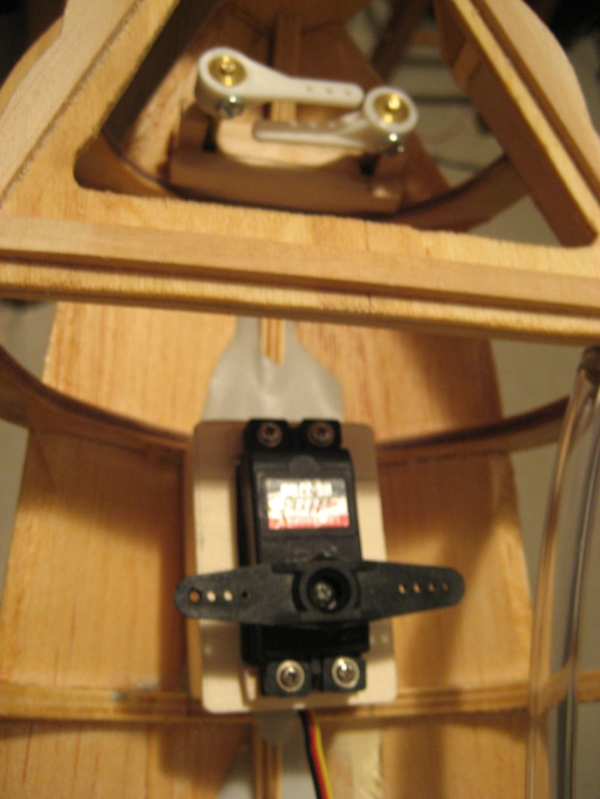

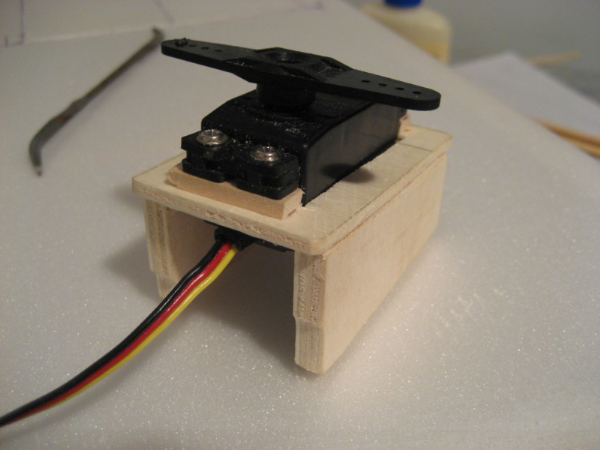

    Next, a servo mount was made from plywood and fitted into the hull.

    [​IMG]

    [​IMG]

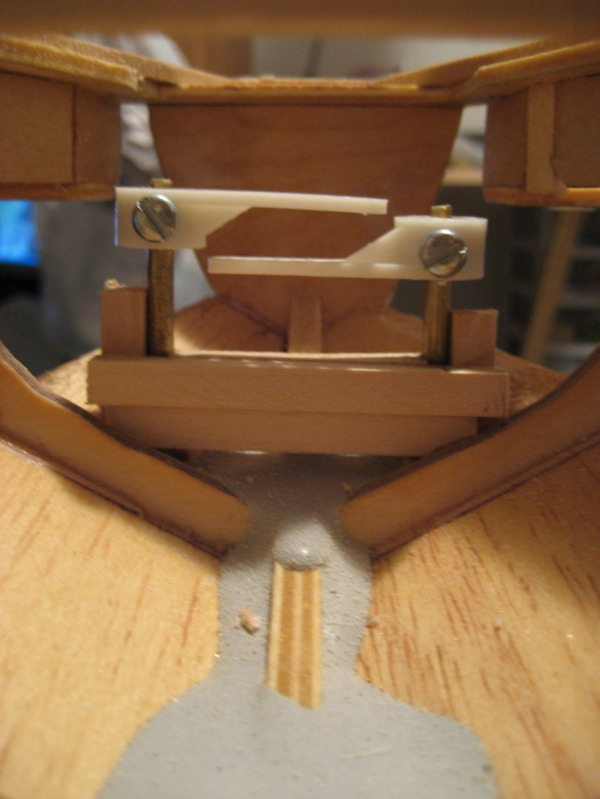

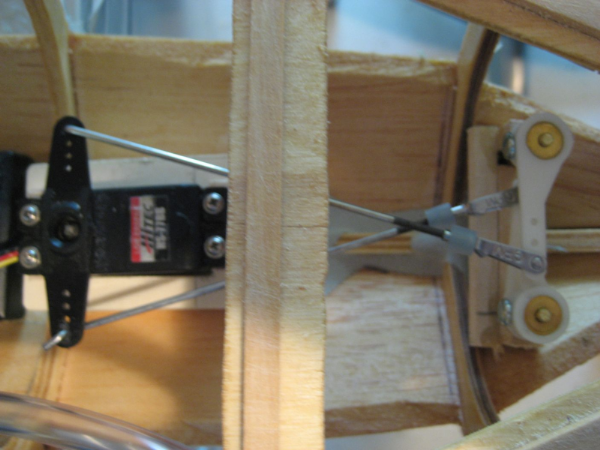

    The control rods are added between the servo and control arms. They are crossed for two reasons; to prevent a rudder from turning to much and locking sideways, and to add steering differential.

    [​IMG]


    Steering differential is when the rudder on the inside of the turn moved further than the other rudder. Dave Rainier is the first person I saw use this method to help his PE turn a little tighter and not loose speed while turning. Even though another PE may turn as tight, Dave's ship maintains speed through the turn instead of slowing down. So even if another ship turns as tight as his, he will finish the turn before the other ship ... a huge advantage!

    [​IMG]

    [​IMG]



    <img src="

  14. mike5334

    mike5334 Well-Known Member

    Joined:
    Aug 21, 2007
    Posts:
    1,877
    Location:
    Mississippi

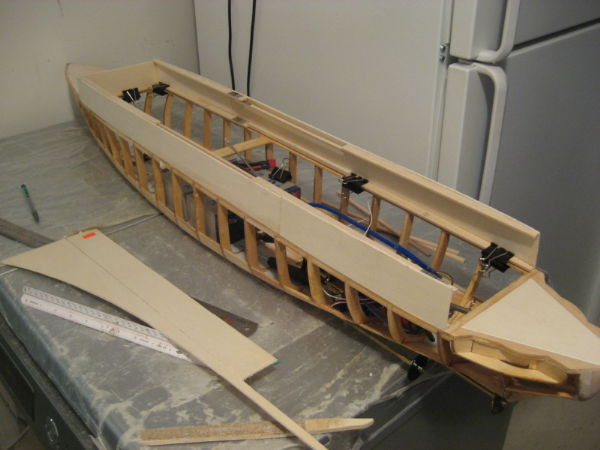

    Construction - Deck

    With most of the running gear installed into the ship, it's time to start working on the sides and top. I'm not going to go over how to sheet a ship in this thread because there are many other sources that tell it better. But I would like to show you the my method for making decks.

    Remember earlier, the ship got a 1/4" wide by 1/8" thick basswood caprail glued around the outer edge of the subdeck. This left a recessed area for the deck. Now it would be really tedious to try to freehand or draw that recessed area onto a piece of wood for the deck. A much simpler way is to use tracing paper to make a deck pattern! :)

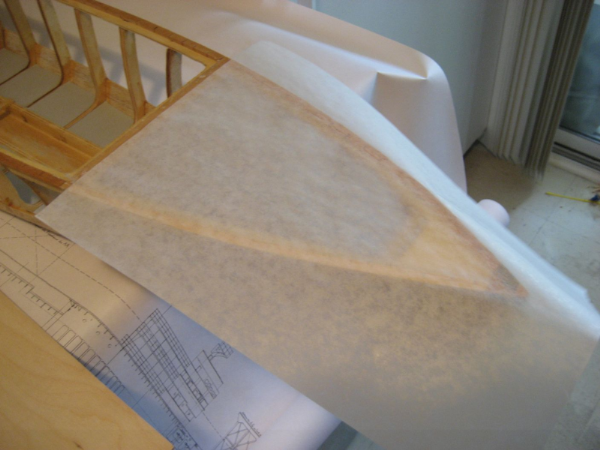

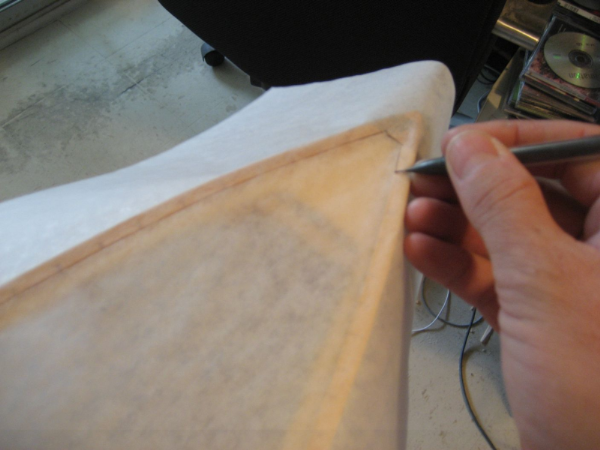

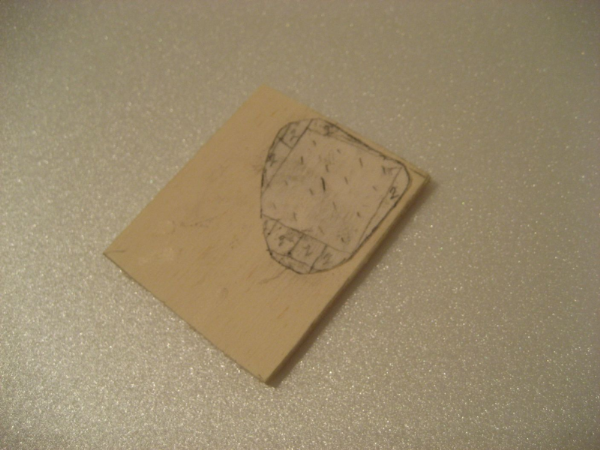

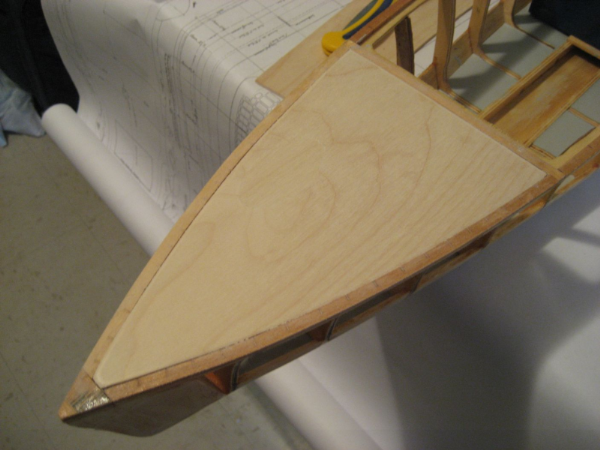

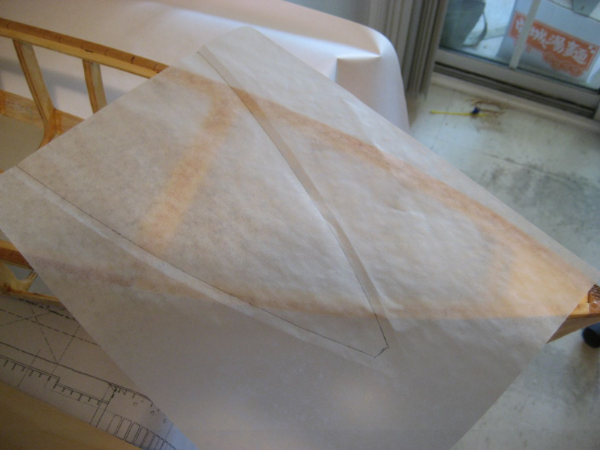

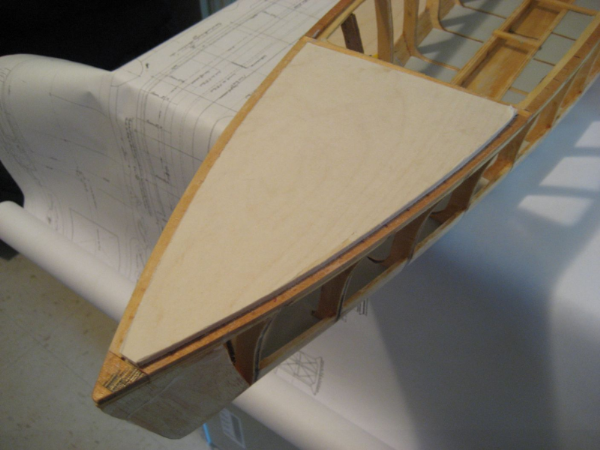

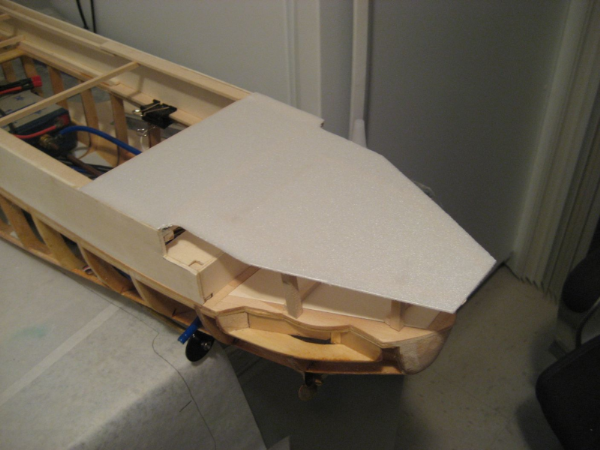

    Using a glue stick, stick a piece of tracing paper onto the caprail. Then use a pen or pencil to trace the inside edge of the caprail on the tracing paper. What we get is a nice pattern that can be glued onto a piece of wood for cutting. The deck will fit nearly perfect right after cutting and will only need some sanding for a perfect tight fit. A tight fit means less water inside the hull from a poor deck seal.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  15. mike5334

    mike5334 Well-Known Member

    Joined:
    Aug 21, 2007
    Posts:
    1,877
    Location:
    Mississippi
    Construction - Flight Deck

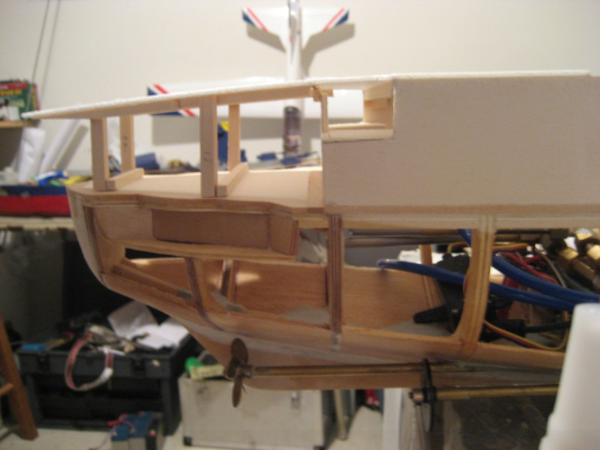

    Ok, here is where things get diffrent from a normal ship. The construction method for the flight deck is very diffrent than making a superstructure for a warship. On the next build I do, I'll post a how-to for making a warship's superstructure out of wood. There are many other good methods for superstructures scattered around the web. Research and find one that you can do! :)

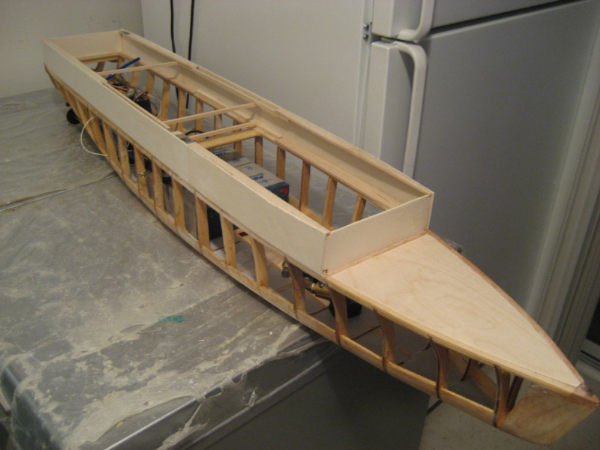

    The first thing was to build a "box" for the hanger area. The top and bottom side pieces were cut into the same hull curve as the subdeck.

    [​IMG]

    [​IMG]

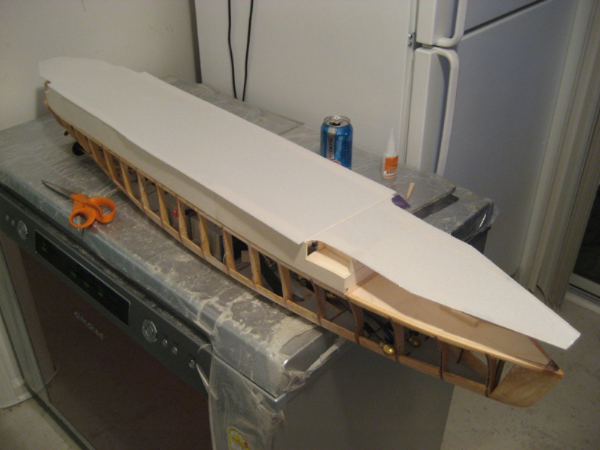

    Next, the front and rear portions of the flight deck that overhang the hull were cut out to shape and glued on. 1/4" basswood was used for the overhanging flight deck supports. The flight deck itself is made from 3mm Depron foam for less weight than plywood. I don't know how well the Depron will hold up...guess we'll find out during the MWC Nats. heh. If it doesn't work, then the Depron will get replaced with 1/16" plywood.
