    Since we are not meeting weekly, I thought I would share couple of my on-going projects. Normally I like to work on my projects in secret and only reveal them when complete. These extraordinary times call for extraordinary measures, so let the de-classification begin.

    These are not all combat projects, but I hope you enjoy them.

  2. rcengr

    rcengr Vendor

    Joined:
    Feb 13, 2010
    Posts:
    1,291
    Location:
    Ohio
    First, the new toy/tool. In February I bought a 45 watt laser cutter with a 20"x12" bed. I've been learning how to use it and building accessories like hold-downs.

    muse 1.JPG

    muse 2.JPG

    The first item cut.

    My first new kit design, the liberty ship. I've always been unhappy with the liberty ship plans I posted in the resource section. The plans were done early in my design experience and were not as good as my later kits. Now I can offer a kit that assembles much easier. liberty 1.JPG

    WillCover, NickMyers, Xanthar and 4 others like this.
  3. rcengr

    rcengr Vendor

    Joined:
    Feb 13, 2010
    Posts:
    1,291
    Location:
    Ohio
    Here's a project I finished yesterday. After over 4 years of using a trashcan liner taped over the top to keep the heat in, I finally built a top for my 3D printer.

    3d printer.JPG

    Now I need to replace the cardboard door. I'm out of acrylic so that may take a while.

    Last edited: Apr 15, 2020
    Nate G, WillCover and Beaver like this.
  4. rcengr

    rcengr Vendor

    Joined:
    Feb 13, 2010
    Posts:
    1,291
    Location:
    Ohio
    This the year for the overhaul of my Tugster rescue tug. Some of the work planned:
    - Clean up and repaint
    - Replace ESCs
    - Rework rudder linkage
    - Upgrade lights
    - Replace siren
    - Add new capability

    Top ready for new paint
    tugster 1.JPG

    Top in primer. My new paint arrives in the mail on April 17th. The base of its new capability is mocked up on the stern.
    tugster 3.JPG

    The bottom in its present state. The paint is in a very rough and dirty. New "tires" have been laser cut and are ready for installation. Now I can get rid of the cheesy pipe insulation.
    tugster 2.JPG

    Beaver likes this.
  5. rcengr

    rcengr Vendor

    Joined:
    Feb 13, 2010
    Posts:
    1,291
    Location:
    Ohio
    The BIG project. A 48" Dumas PT boat. This has been languishing in my shop for over two years, so first I hung up the plans for motivation.

    pt plans.JPG
    Next I cleaned up and sanded the hull. The hull was also trimmed along the gunwale to its final shape.

    pt hull bare.JPG

  6. rcengr

    rcengr Vendor

    Joined:
    Feb 13, 2010
    Posts:
    1,291
    Location:
    Ohio
    The motor mounts for the PT boat arrived yesterday.
    pt motors.JPG

    Nate G and rcaircraftnut like this.
  7. GregMcFadden

    GregMcFadden Facilitator RCWC Staff

    Joined:
    Dec 6, 2006
    Posts:
    2,515
  8. rcengr

    rcengr Vendor

    Joined:
    Feb 13, 2010
    Posts:
    1,291
    Location:
    Ohio
    I mocked up the lettering for the side of Tugster today. Hopefully the weather will be nice enough this weekend to start painting. The camo pattern was from the material I'm using for the mask and was not intentional. It does look very interesting though and kinda matches the military purpose of the boat.

    Tugster 4.JPG

  9. kgaigalas

    kgaigalas Well-Known Member

    Joined:
    Jul 13, 2015
    Posts:
    844
    Location:
    Grand Rapids, Michigan
    I remember this tug from way back.
    What do you need to make electronic sounds
    As I remember you had a police siren

  10. rcengr

    rcengr Vendor

    Joined:
    Feb 13, 2010
    Posts:
    1,291
    Location:
    Ohio

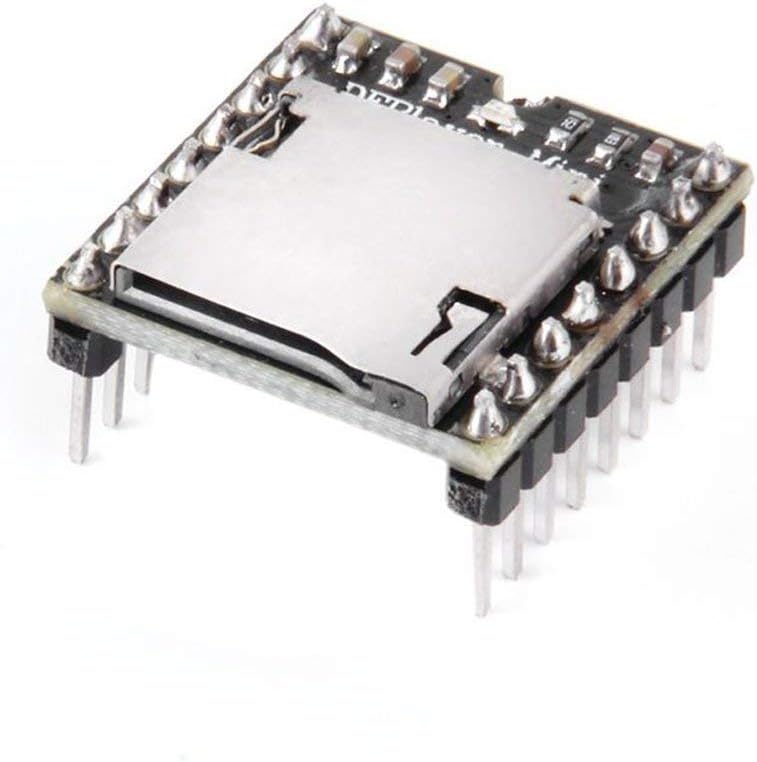

    I had an electronic siren, a Velman kit I think, but I fried it last year. So I'm going to fully digital sound with a DFPlayer Mini sound module, about $4ea. You put the sound clip of what ever you want to hear on a micro SD card. The sound module has a built in amplifier but I opted to add a 2 watt amplifier.
