    I think you should leave it black. Nice and Menacing!

  2. GregMcFadden

    GregMcFadden Facilitator RCWC Staff

    Joined:
    Dec 6, 2006
    Posts:
    2,526
    and in the sun here a good way to roast the internal electronics in the summer ;)

  3. KeriMorgret

    KeriMorgret Facilitator RCWC Staff Vendor

    Joined:
    Jul 15, 2009
    Posts:
    609
    Location:
    Seattle, Washington
    A good sink will take care of that extra heat.

  4. GregMcFadden

    GregMcFadden Facilitator RCWC Staff

    Joined:
    Dec 6, 2006
    Posts:
    2,526
    Yep it will. As an aside, if this deck works out, it can be readily laser cut from either 1/8" ABS or 1/8" Wood, and fit together.

  5. Hovey

    Hovey Admiral (Supporter)

    Joined:
    Nov 1, 2009
    Posts:
    323
    Location:
    Washington
    Wow, looking really nice there Greg. Now I really don't want to post build pictures of my Bayern as yours looks so nice.

  6. GregMcFadden

    GregMcFadden Facilitator RCWC Staff

    Joined:
    Dec 6, 2006
    Posts:
    2,526
    just wait for the cannons, I just have to figure out one mount point and then figure out how to make one hard part....

  7. GregMcFadden

    GregMcFadden Facilitator RCWC Staff

    Joined:
    Dec 6, 2006
    Posts:
    2,526
    [​IMG]

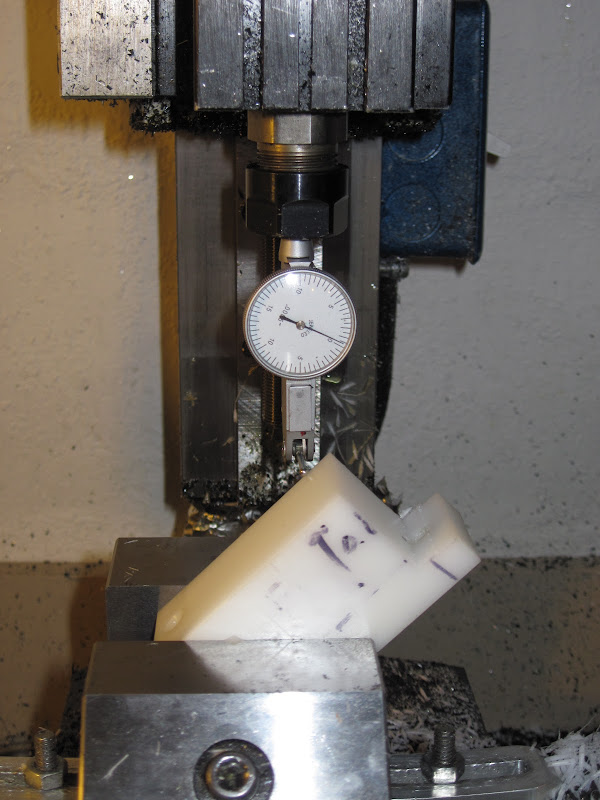

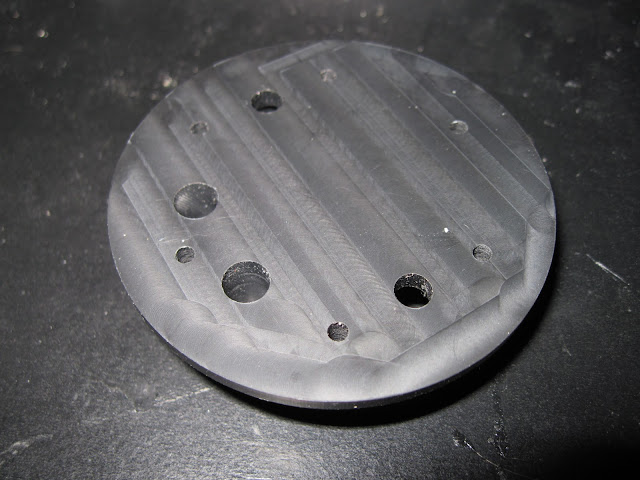

    Now as soon as I figure out how to zero the X axis, a new part will be born.... (block is within 0.0005 inches per inch of travel along surface of 45 degrees off horizontal)

  8. GregMcFadden

    GregMcFadden Facilitator RCWC Staff

    Joined:
    Dec 6, 2006
    Posts:

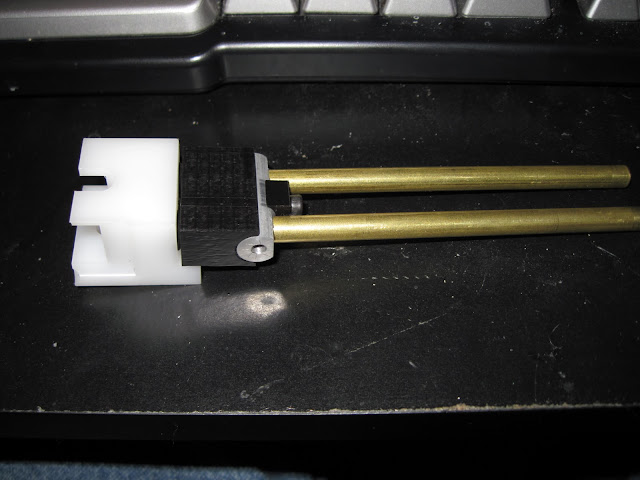

    2,526
  9. Tugboat

    Tugboat Facilitator RCWC Staff Admiral (Supporter)

    Joined:
    Jan 10, 2007
    Posts:
    8,298
    Location:
    Statesboro, GA

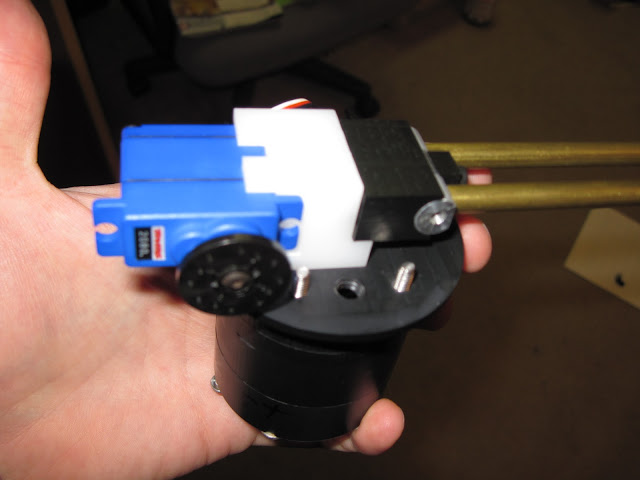

    Very spiffy. If those are firing cannons, is there a stop block to keep them from elevating above the horizon?

    But either way, you once again show that you are Rediculously Skilled(tm).

  10. Lou

    Lou It's just toy boats -->> C T D <<-- Admiral (Supporter)

    Joined:
    Jan 31, 2008
    Posts:
    2,110
    Location:
    Smyrna, Georgia
    Very Nice!

  11. GregMcFadden

    GregMcFadden Facilitator RCWC Staff

    Joined:
    Dec 6, 2006
    Posts:
    2,526
    the screw that holds the rod in only allows zero to -~20ish degrees of elevation control due to the shape of the slot

    and thanks

    -Greg

  12. NickMyers

    NickMyers Admin RCWC Staff

    Joined:
    Nov 15, 2007
    Posts:
    4,407
    Location:
    Federal Way, WA
    i absolutely cannot wait to see this all come together on the water next year, even if it is shooting me

  13. jadfer

    jadfer Well-Known Member

    Joined:
    Mar 29, 2008
    Posts:
    1,576
    Location:
    Houston, TX
    Greg, are these for big gun? If not where does the oring go?

  14. GregMcFadden

    GregMcFadden Facilitator RCWC Staff

    Joined:
    Dec 6, 2006
    Posts:
    2,526

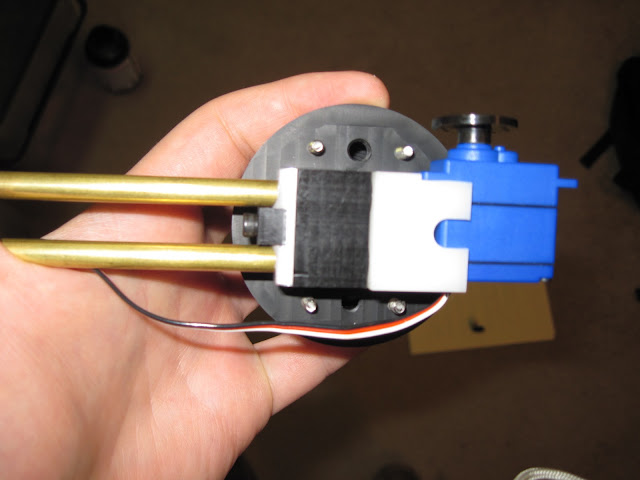

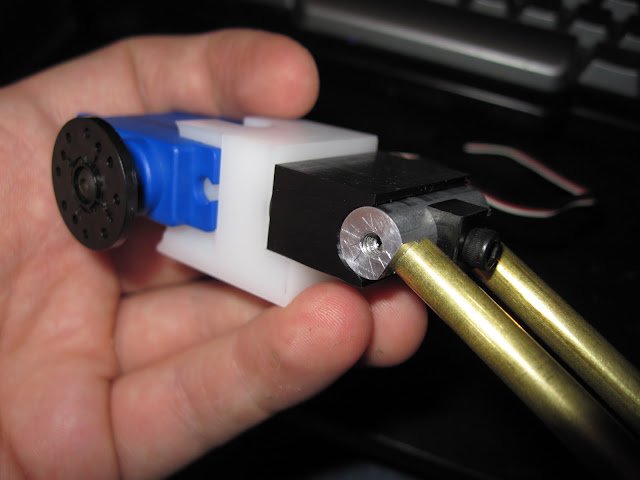

    They will feed BB and 3/16 (you use a different O-ring for each size). the O-ring is in the white part. Access to the screw that compresses the O-ring is behind the servo, so to access, you set the servo in the horizontal position, loosten screw, remove servo (removing linkage not necessary) and adjust screw for O-ring compression.

    I just hope to get enough of it done before march because after that, there will be no boat time for a while... and a new future captain.

  15. GregMcFadden

    GregMcFadden Facilitator RCWC Staff

    Joined:
    Dec 6, 2006
    Posts:
    2,526
    [​IMG]

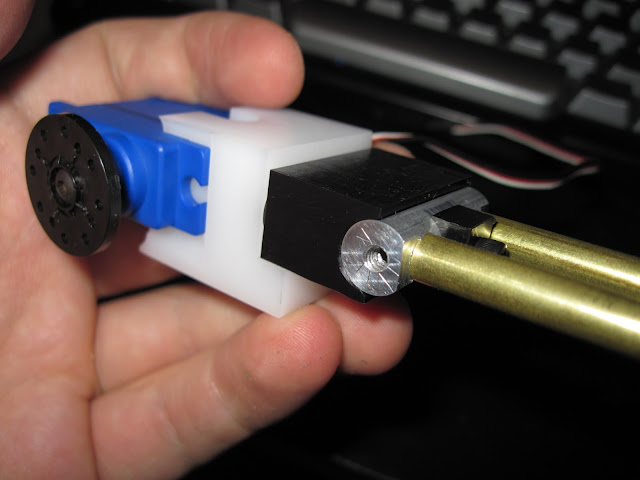

    From SMS BADEN

    [​IMG]
    From SMS BADEN

    [​IMG]
    From SMS BADEN

    [​IMG]
    From SMS BADEN

    [​IMG]
    From SMS BADEN

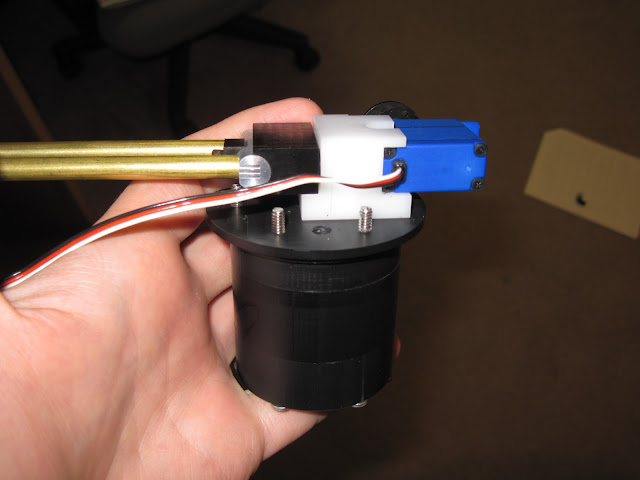

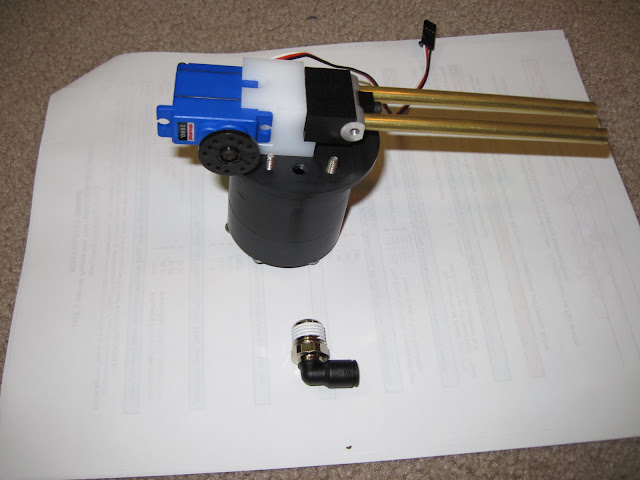

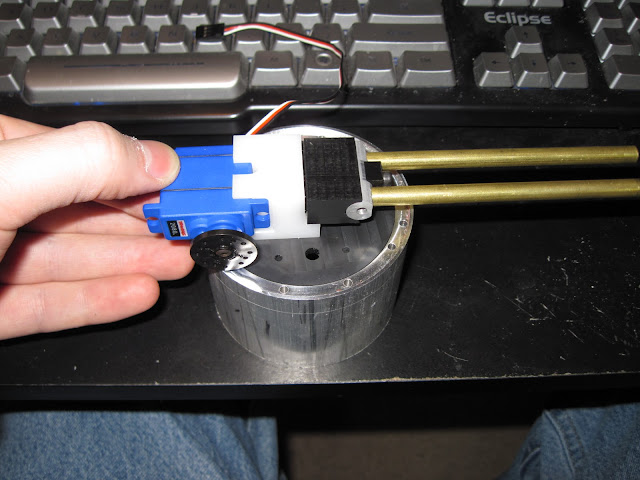

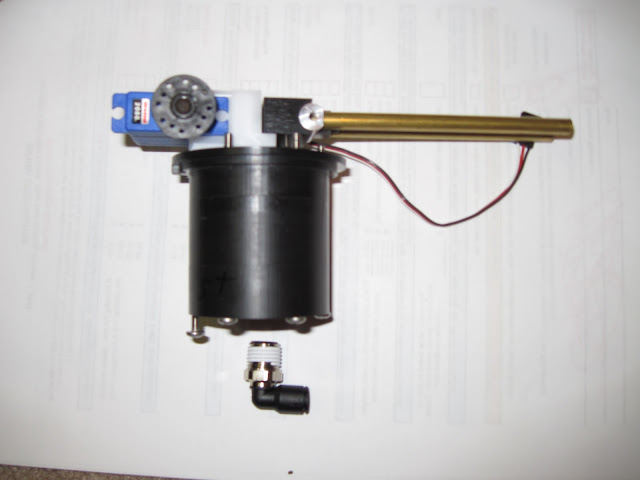

    One of the neat things about this cannon, is that it could be made from a laser cut top and bottom part, an appropriately sized aluminum tube, and a cast or injection molded plastic to make the internal geometry (not a load bearing cast plastic). But if you had an injection molding machine and the right plastic, you could make the whole thing as a molded part.... not quite done yet, but coming along. one more of this style needs to be made and one of the single cannon style (or this style with one port plugged, which is easy to do)

  16. CURT

    CURT Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    5,751
    Location:
    St. John's Newfoundland , Canada
    Looks really really nice!

  17. Hovey

    Hovey Admiral (Supporter)

    Joined:
    Nov 1, 2009
    Posts:
    323
    Location:
    Washington
    Are these supposed to fire bb's or miniture shells? They look REALLY nice!

  18. JustinScott

    JustinScott Well-Known Member

    Joined:
    Oct 20, 2006
    Posts:
    2,211
    Location:
    Dallas
    That is flippin incredible!
