SMS Seydlitz Build

Discussion in 'Warship Builds' started by Charley, May 17, 2016.

Page 2 of 5
  1. NickMyers

    NickMyers Admin RCWC Staff

    Joined:
    Nov 15, 2007
    Posts:
    4,409
    Location:
    Federal Way, WA
    are the enclosed portions of your water channel just void space or were they filled?

    NickMyers, Jun 5, 2016
    #21
  2. Charley

    Charley Vendor

    Joined:
    Jul 17, 2015
    Posts:
    214
    Location:
    Lancing, Tennessee
    They are for the most part voids.
    I have made great progress I will post pics on the next day or so.
    hoping to skin by this coming weekend then sea trials

    Charley, Jun 5, 2016
    #22
  3. Charley

    Charley Vendor

    Joined:
    Jul 17, 2015
    Posts:
    214
    Location:
    Lancing, Tennessee
    Ok here is a few more pics So far Windows are cut.


    Shafts installed, also had to cut away some of the keel to allow room for the larger rudder


    Gear drives installed, boxes are resting on a Bondo pad and epoxied into place.


    Filled in deck levels with Birch ply


    Rudder servo mount printed and installed it houses 2 posts for the inline rudders


    Shilling rudder printed and installed along with aux rudder for testing of movement


    Drag shafts and struts added


    Deck panels cleaned up and fitted with Barbette's


    More to follow

    Charley, Jun 6, 2016
    #23
    dietzer likes this.
  4. Charley

    Charley Vendor

    Joined:
    Jul 17, 2015
    Posts:
    214
    Location:
    Lancing, Tennessee
    Painted the deck tonight I think it did well for a faux wood look


    Charley, Jun 6, 2016
    #24
    Tugboat, dietzer and Lou like this.
  5. Lou

    Lou It's just toy boats -->> C T D <<-- Admiral (Supporter)

    Joined:
    Jan 31, 2008
    Posts:
    2,112
    Location:
    Smyrna, Georgia
    Are we allowed to have top and bottom on the rudder?

    Lou, Jun 6, 2016
    #25
  6. Charley

    Charley Vendor

    Joined:
    Jul 17, 2015
    Posts:
    214
    Location:
    Lancing, Tennessee
    You couldn't in the MWC. Not sure how much longer in the IRC.

    The plates are in the calculated area though

    Charley, Jun 6, 2016
    #26
  7. Charley

    Charley Vendor

    Joined:
    Jul 17, 2015
    Posts:
    214
    Location:
    Lancing, Tennessee
    Basic SS done in cad and starting to print



    Attached Files:

    Charley, Jun 6, 2016
    #27
    Tugboat, dietzer, Lou and 1 other person like this.
  8. Renodemona

    Renodemona Well-Known Member

    Joined:
    Aug 6, 2007
    Posts:
    836
    Location:
    Reno, NV
    Wow, lots of work there. 3D printed supers are the way of the future. Unfortunately my 3D printer is very slow. *shakes fist at pile of balsa and plasticard*

    Renodemona, Jun 6, 2016
    #28
    Tugboat and NickMyers like this.
  9. dietzer

    dietzer Admiral (Supporter)

    Joined:
    Mar 27, 2007
    Posts:
    739
    Awesome job! That paint job is gorgeous. I've been following this thread with a mix of interest and awe...

    May I ask what software you are using for CAD?

    dietzer, Jun 7, 2016
    #29
  10. Charley

    Charley Vendor

    Joined:
    Jul 17, 2015
    Posts:
    214
    Location:
    Lancing, Tennessee
    Thanks paint work is a tan base coat using a marine sand and brown applied lightly with a semi wet course brush.

    I am old school so my cad choice is Autocad mechanical

    Charley, Jun 7, 2016
    #30
  11. SteveT44

    SteveT44 Well-Known Member

    Joined:
    Nov 1, 2009
    Posts:
    1,869
    Location:
    MD
    "aux rudder"? Looks like a pimple on a gnat's ass. ;)

    SteveT44, Jun 7, 2016
    #31
    Maxspin likes this.
  12. Charley

    Charley Vendor

    Joined:
    Jul 17, 2015
    Posts:
    214
    Location:
    Lancing, Tennessee
    It is rather cute and fully functional. It's a semi trim rudder

    Charley, Jun 7, 2016
    #32
  13. Maxspin

    Maxspin -->> C T D <<--

    Joined:
    Jul 30, 2014
    Posts:
    634
    Location:
    Yelm, Washington
    I am guilty of this as well.....
    Does anyone care how much keel we cut away to allow for rudder placement?

    Maxspin, Jun 7, 2016
    #33
  14. rcaircraftnut

    rcaircraftnut Well-Known Member

    Joined:
    Jan 2, 2016
    Posts:
    1,520
    Location:
    Oklahoma
    Is the keel cut to make the rudder more effective? I don't see how it could be, so no, I don't care, or see why anyone else would. But I have been known to miss things lol.

    rcaircraftnut, Jun 7, 2016
    #34
  15. Maxspin

    Maxspin -->> C T D <<--

    Joined:
    Jul 30, 2014
    Posts:
    634
    Location:
    Yelm, Washington
    In order to make the props / rudders most efficient. We IRC tend to ignore scale under the waterline. Given the crickets, lets just put the lid back on the can of worms, and put it back on the shelf....

    Maxspin, Jun 8, 2016
    #35
  16. Charley

    Charley Vendor

    Joined:
    Jul 17, 2015
    Posts:
    214
    Location:
    Lancing, Tennessee
    I have done a few thing mainly spending time printing. I was able to complete and install the Pump and solenoid mount


    Attached Files:

    Charley, Jun 10, 2016
    #36
  17. Trey Schultz

    Trey Schultz Member

    Joined:
    Jun 9, 2016
    Posts:
    75
    Location:
    Md
    I love the 3d printer servo mount. Such a great idea.
    Now i just need to start another boat so I can use it.

    Trey Schultz, Jun 10, 2016
    #37
  18. Lou

    Lou It's just toy boats -->> C T D <<-- Admiral (Supporter)

    Joined:
    Jan 31, 2008
    Posts:
    2,112
    Location:
    Smyrna, Georgia
    How goes the building?
    [​IMG]

    Lou, Jun 29, 2016
    #38
    rcengr and Tugboat like this.
  19. Tugboat

    Tugboat Facilitator RCWC Staff Admiral (Supporter)

    Joined:
    Jan 10, 2007
    Posts:
    8,298
    Location:
    Statesboro, GA

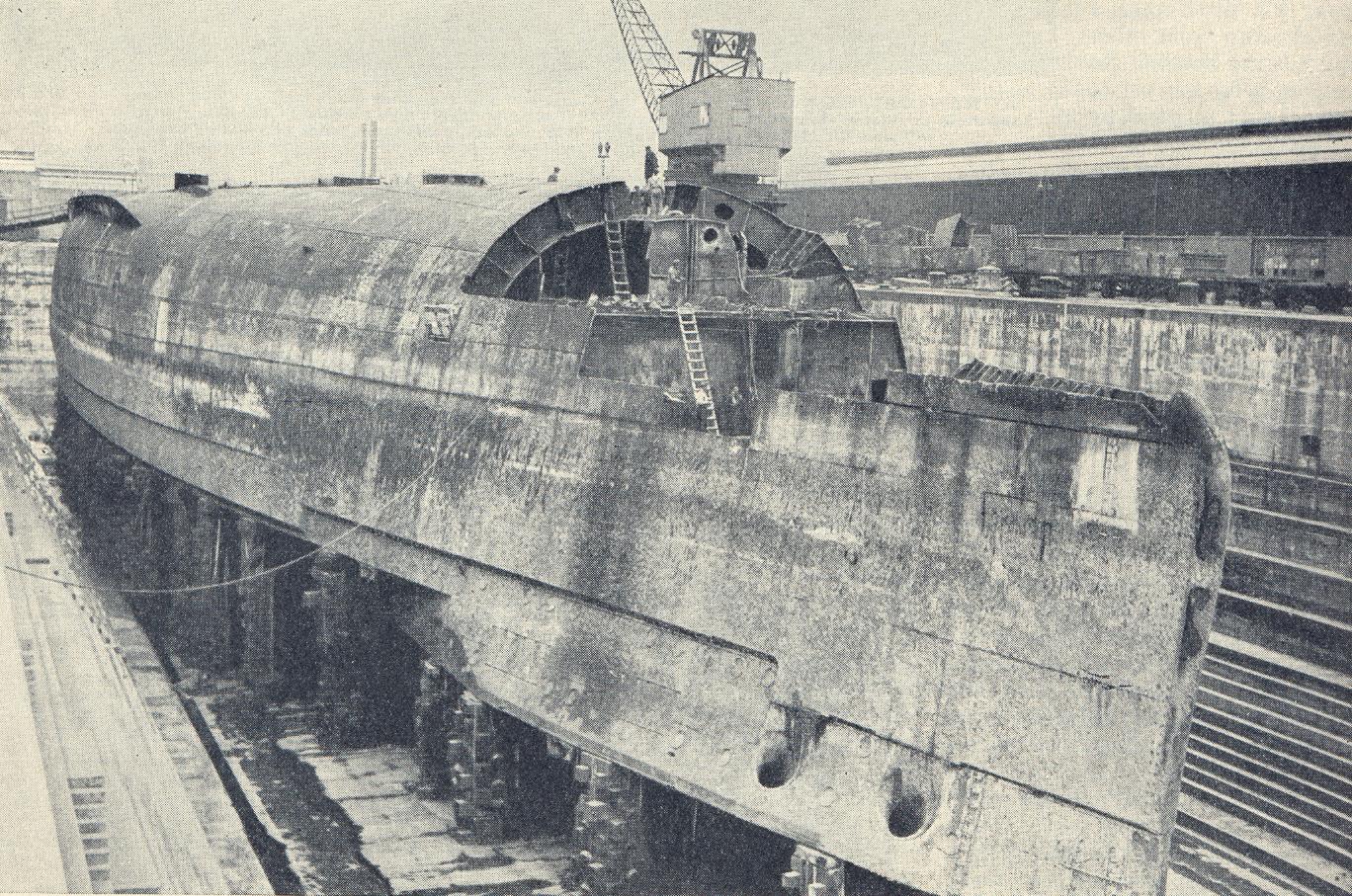

    That's how they drain the water out after a 1:1 scale sink, none of this turkey-baster foolishness...

    Tugboat, Jun 30, 2016
    #39
    Wmemlo and rcengr like this.
  20. NASAAN101

    NASAAN101 Well-Known Member

    Joined:
    Aug 26, 2009
    Posts:
    2,507
    Location:
    Pittsburgh PA, USA
    Ha ha ha, that's good, clark :)
    Nikki

    NASAAN101, Jun 30, 2016
    #40
