V105-V108 WWI German Torpedo Boat

Discussion in 'Ship Plans' started by webwookie, Jun 12, 2008.

Thread Status:
Not open for further replies.
  1. webwookie

    webwookie Active Member

    Joined:
    Mar 12, 2008
    Posts:
    372

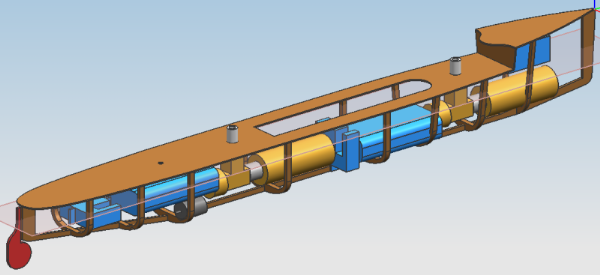

    Digital mockup of a possible combat-ready configuration:
    [​IMG]
    Although some component interference does appear in this screenshot, the components have been reorganized into a manner where they do indeed fit within the alotted volume. Spring-powered torpedo cannon would further reduce the space issues.
    These hull plans are based upon a handful of sources (far too many to list here) but the most prominant (and only one readily accessible on the web) is The Digital Navy and their (somewhat smaller scale) card model templates are here.

    1/144 hull data download locations:

    .pdf drawings:
    https://rcwarshipcombat.com/resources/german-torpedoboat-v105-108.20/

    .dxf drawings:
    Click Here

    solid hull frame model in .stp format (multiple solid bodies):
    Click Here

    Construction notes/recommendations:

    • It is strongly recommended that a caprail be added to the hull by using multiple piecces of 1/8" wide wood between the ribs and shaping to fit.
    • Light Construction is crucial; due to its small size, there is little freeboard and it is prone to capsizing.

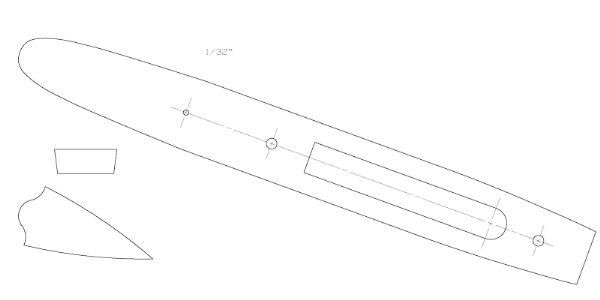

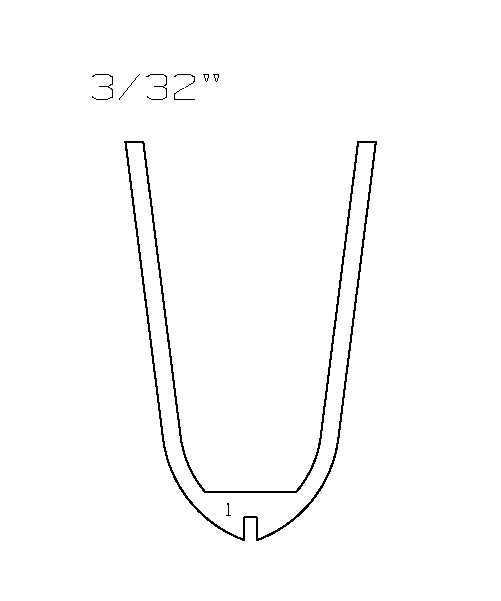

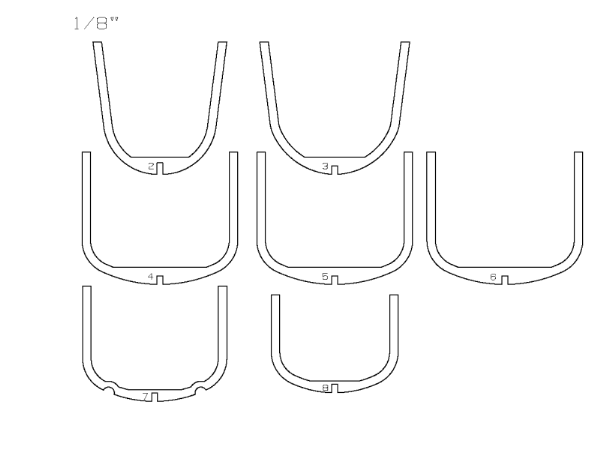

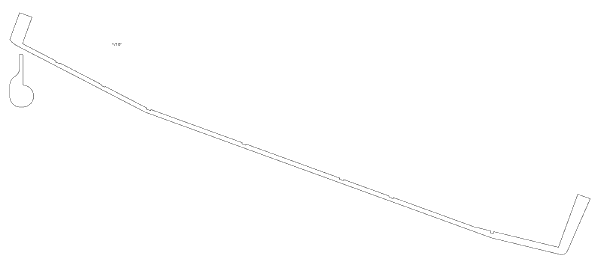

    Screenshots of the sheets in the pdf:
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited by a moderator: Feb 14, 2017
  2. mike5334

    mike5334 Well-Known Member

    Joined:
    Aug 21, 2007
    Posts:
    1,877
    Location:
    Mississippi
    Very nice!

  3. Anachronus

    Anachronus Well-Known Member

    Joined:
    Mar 27, 2007
    Posts:
    3,085
    Location:
    Natchez, MS
    Very. I am going to attempt it this weekend. At least make a start at it.

    Are you sure that rib#2 is correct? It does not seem tall enough for the forecastle.

    *Edit* I refer to the .pdf version.

  4. Anachronus

    Anachronus Well-Known Member

    Joined:
    Mar 27, 2007
    Posts:
    3,085
    Location:
    Natchez, MS
    Printed the plans out. They fit very neatly on 11x17" paper. I did crop the keel sheet just to make sure every thing was within the printable area.

    Damn, she is small. I have to see if she will float.

    Though I guess as this is a German Torpedoboote I should say he.

  5. webwookie

    webwookie Active Member

    Joined:
    Mar 12, 2008
    Posts:
    372
    I just noticed that rib #1 is missing from the pdf; that's the one that should be taller and reach the forecastle deck. I'll correct that and have the updated file probably posted sometime tomorrow in addition to cropping down the largest sheet so that the dimensions are already set for 11x17 paper.

  6. Anachronus

    Anachronus Well-Known Member

    Joined:
    Mar 27, 2007
    Posts:
    3,085
    Location:
    Natchez, MS
    Yes, it was I was just being a bit paranoid as it was a tight fit. Plus I have had issues with that particular printer before.

    Silly me not counting the notches in the keel correctly. I really should have been resorting to counting with fingers this weekend.

  7. webwookie

    webwookie Active Member

    Joined:
    Mar 12, 2008
    Posts:
    372
    Rib #1 is in the updated .pdf on page 4. Each sheet also specifies part(s) thickness. Note that ribs 4, 5, and 6 are actually identical.

  8. GregMcFadden

    GregMcFadden Facilitator RCWC Staff

    Joined:
    Dec 6, 2006
    Posts:
    2,536
    looking good.. I look forward to seeing it finished

  9. Anachronus

    Anachronus Well-Known Member

    Joined:
    Mar 27, 2007
    Posts:
    3,085
    Location:
    Natchez, MS
    I am interested to see if it will float. What sort of weight are we looking at (assuming some one has calculated it.) About a pound or so?

    421 tons heavy displacement for the real thing.

  10. webwookie

    webwookie Active Member

    Joined:
    Mar 12, 2008
    Posts:
    372
    I believe that 0.87lbs was the computed estimate for displacement at indicated waterline.

  11. Anachronus

    Anachronus Well-Known Member

    Joined:
    Mar 27, 2007
    Posts:
    3,085
    Location:
    Natchez, MS

    That is a bit heavier than I worked out. Which is not a bad thing.

  12. webwookie

    webwookie Active Member

    Joined:
    Mar 12, 2008
    Posts:
    372

    This was with the added hull volume. I assume that the 0.33lb value you found was based upon scaling the real ship's numbers?

  13. Anachronus

    Anachronus Well-Known Member

    Joined:
    Mar 27, 2007
    Posts:
    3,085
    Location:
    Natchez, MS
    Right. 421 tons times 2204 divided by 144 cubed. That was how the weight calculations were explained to me a while back.


  14. Anachronus

    Anachronus Well-Known Member

    Joined:
    Mar 27, 2007
    Posts:
    3,085
    Location:
    Natchez, MS
    Of course IRCWCC gives you +25% or 1 lb. Which ever is greater

    MWC gives +25% or +10% and a lb, which ever is bigger.

    I have not been able to find the Biggun rules.

  15. JohnmCA72

    JohnmCA72 Member

    Joined:
    Nov 10, 2006
    Posts:
    681

    Most (all?) Big Gun clubs don't specify weights, only that ships float at scale water line.

    JM

  16. Anachronus

    Anachronus Well-Known Member

    Joined:
    Mar 27, 2007
    Posts:
    3,085
    Location:
    Natchez, MS
    Well that explains that.

    One thing else I have noticed. The keel has 7 notches and there are 8 ribs. How far back from the stem should rib 1 be?

    Or on closer examination, where should #2 be?

  17. webwookie

    webwookie Active Member

    Joined:
    Mar 12, 2008
    Posts:
    372

    Good catch, a keel notch for rib #2 is missing; yet another oops on my part. I'll take a look in the morning.

  18. Anachronus

    Anachronus Well-Known Member

    Joined:
    Mar 27, 2007
    Posts:
    3,085
    Location:
    Natchez, MS
    It is a work in progress. I consider myself a beta tester.

  19. Tugboat

    Tugboat Facilitator RCWC Staff Admiral (Supporter)

    Joined:
    Jan 10, 2007
    Posts:
    8,298
    Location:
    Statesboro, GA
    I have the ribs layed out in 1/96 for a beta-test on how cheaply one can get into Battlestations. The torps will be single-shot spring-powered ones. The props are made from pennies :) (drilling the little buggers dead center is tricky! FAQ to come if I get time, didn't take any pics while doing them.
    Short form:
    1) Draw a 3/4" circle on the computer, with a dot in the dead center of it.
    2) Make at least 2 of these. (might need more if you slip and drill off-center)
    3) Cut them out and glue them to copper pennies.
    4) Centerpunch the dot in the middle of each penny.
    5) Drill a 1/8" hole in each penny.
    6) Sit a 1/8" collar over the hole on each side, clamping them in some vice grips.
    7) Use a blowtorch to solder the collars to the penny. Repeat for all pennies you're doing.
    8) Use a dremel with cutting wheel to cut the outside of the penny into sections... two cuts for a 2-blade, 3 cuts for a 3-blade, etc.
    9) Use pliers to bend the blades to an asthetically pleasing angle.
    10) Mount them to your shafts and bon apetit! Good hunting!

    *I got the idea from an article on the Big Gun Naval War College, but figured pennies would substitute well for thick copper sheet for 3/4" props.

  20. Anachronus

    Anachronus Well-Known Member

    Joined:
    Mar 27, 2007
    Posts:
    3,085
    Location:
    Natchez, MS
    Considering how much trouble I have been having with the 1/144 ribs I might just scale up. Broke 2 this morning but will press on. Weather permitting.
