Maxspin MK 1 prototype

Discussion in 'Weapons & Pneumatics' started by Maxspin, Oct 2, 2015.

  1. Maxspin

    Maxspin -->> C T D <<--

    Joined:
    Jul 30, 2014
    Posts:
    634
    Location:
    Yelm, Washington
    OK….. not new. Just a shameless knock off of the Stynger https://rcwarshipcombat.com/threads/anatomy-of-a-tyngtech-stynger-cannon.443874/
    [​IMG][​IMG]

    Maxspin Armaments Co. is lacking the precision tooling found at TyngTech, so some what less technical...


    My KIP solenoids crapped out on the Washington, so my new Barham build had to sacrifice my new Spartan Solenoids to the cause. For our last battle of the year it was just a quick re-plum.

    I was looking at it last night and thought it was a perfect chance to try out the “ALL NEW” Maxspin MK I prototype.

    First I pulled a bowgun of the Washington. OK not real proud of the mounts. Don’t laugh, it worked….
    [​IMG]
    Starting with a pretty standard built cannon.
    [​IMG]
    I removed the bottom cap from the T of the cannon and replaced with a (90 degree 1/8" NPT to 1/4" flair adapter). It took several trips to hardware stores NOPE, automotive stores. Just one…. Before I hit the jackpot.
    Ahhhh…. It a EDELMANN 122420. A part number makes all the difference
    [​IMG]
    The only modification that I have made from a standard gun is to drill 3/32 dia hole in the bottom and solder a 3/32 tube in to the hole. Piston height is adjusted by how far you screw the EDELMANN fitting onto the T.
    [​IMG]
    I then took the prototype out to the firing range to test. I had a little spurting an full tweak, but not bad at all for such a quick change out. I could get shots through 2” of pink foam on the first try.
    [​IMG][​IMG]
    Future improvements:

    · SS tight tolerance barrel

    · Magnet at T

    · Supper secret Maxspin MK II prototype……

    Last edited by a moderator: Feb 14, 2017
    SteveT44 and GregMcFadden like this.
  2. SteveT44

    SteveT44 Vendor

    Joined:
    Nov 1, 2009
    Posts:
    1,809
    Location:
    MD
    I'm flattered. Now get rid of that elbow in the up tube and you'll be punching through 4" of foam! ;)

  3. irnuke

    irnuke -->> C T D <<--

    Joined:
    Dec 1, 2011
    Posts:
    1,063
    Location:
    York, SC
    [​IMG]

    Substitute "foam" for "boards", and "shoot" for "hit"..... :p

    Tugboat likes this.
  4. mike5334

    mike5334 Well-Known Member

    Joined:
    Aug 21, 2007
    Posts:
    1,877
    Location:
    Mississippi
    Since the o-ring is after the elbow, the elbow will not effect how hard the cannon will shoot. The oring stops the bb in place until enough pressure builds up behind it.

    Tugboat likes this.
  5. Maxspin

    Maxspin -->> C T D <<--

    Joined:
    Jul 30, 2014
    Posts:
    634
    Location:
    Yelm, Washington

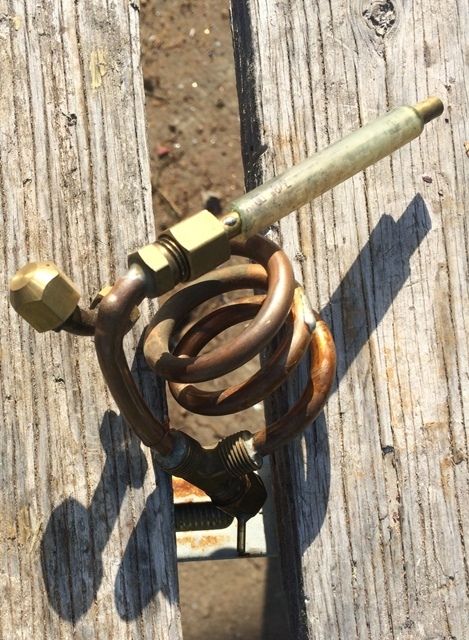

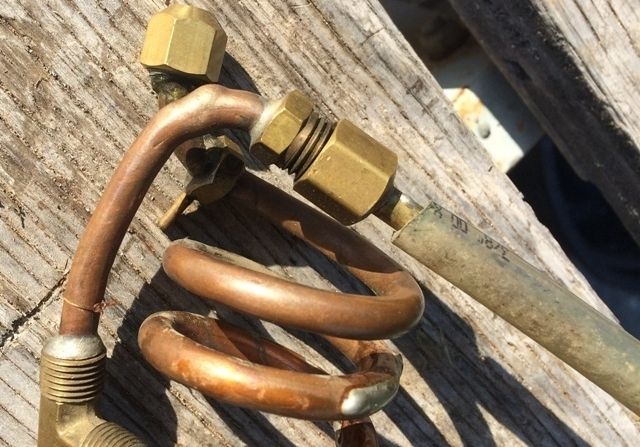

    My previous experience with bent lift tubes was not positive :( I pulled this from my first warship.
    [​IMG][​IMG]

  6. SteveT44

    SteveT44 Vendor

    Joined:
    Nov 1, 2009
    Posts:
    1,809
    Location:
    MD
    Looks like a case of Diverticulitis. That's why I'm using steel brake line.

  7. Maxspin

    Maxspin -->> C T D <<--

    Joined:
    Jul 30, 2014
    Posts:
    634
    Location:
    Yelm, Washington
    That was an old Swampworks gun.
    I have mentioned before about the deficiencies of Maxspin Armaments. I have enough trouble with soldering brass & copper.

  8. thegeek

    thegeek Well-Known Member

    Joined:
    Apr 20, 2008
    Posts:
    1,164
    Location:
    Mongo
    Get the brake line in 6 foot lengths and make sure it is galvanized (very easy to tin and solder), bending it isn't too bad by hand but with a quality bender you can make really tight bends. It will not blow out like the copper, and holds up forever. It will rust inside so keep it blown out after a sink.

  9. Maxspin

    Maxspin -->> C T D <<--

    Joined:
    Jul 30, 2014
    Posts:
    634
    Location:
    Yelm, Washington
    Introducing the MAX MK II prototype.
    [​IMG][​IMG]
    The MK II was successful, but there were very little improvement from the MK I. I ran into difficulty fitting easily even in a N.Carolina turret. I will stick to the MK I design.

    Next step brakeline MK III..... Starting to look more and more line a stynger.

  10. SteveT44

    SteveT44 Vendor

    Joined:
    Nov 1, 2009
    Posts:
    1,809
    Location:
    MD
    When you pickup the brake line, see if they have one of these. Works well for all my bending.
    [​IMG]

    One source: http://www.autobodytoolmart.com/gearwrench-tubing-bender-2517-p-11821.aspx

    Last edited: Oct 5, 2015
  11. Gascan

    Gascan Active Member

    Joined:
    Jul 22, 2007
    Posts:
    920
    I've had brake line blow out, but that was after two years of hard battling using 7/32" balls. It isn't too difficult to work with, so it's easier to replace when the time comes.

  12. Maxspin

    Maxspin -->> C T D <<--

    Joined:
    Jul 30, 2014
    Posts:
    634
    Location:
    Yelm, Washington
    Thanks Steve, I'll get one.

    Keith
